Ultratech Spill Containment Economy Model 8250
Economical Spill Containment Berm
UltraTech Spill Containment Berm Economy Model provides you with durable, dependable spill containment to safely store containers, equipment and machinery for long periods of time. The Economy Model Spill Berm is inexpensive, yet extremely durable and rugged for outdoor use or indoor use on construction sites, jobsites, facilities, and more. Made from Copolymer-2000 material, the Economy Model spill berm is easy to setup and install. The L-shaped brackets are quickly and easily inserted into sleeves that are spaced out around the perimeter of the spill containment berm. This spill berm has no extra material or framing outside of the sidewalls, making it space-conscious and great for indoor use. The most popular size is the Ultratech 8250, but there are many other sizes as well (please see chart below). Interested in learning more about our Tank Secondary Containment? Call us at 863-261-8388.
Ultra Economy Containment Berm Features
- Material: Copolymer-2000 (Other Available on Request)
- Aluminum L-Shaped Brackets for Support
- Meets SPCC and EPA Regulations
Ultra Economy Containment Berm Benefits
- Economical Spill Containment
- Lightweight, Durable Construction
- Easy Assembly and Setup
UltraTech Spill Containment Economy Model Details

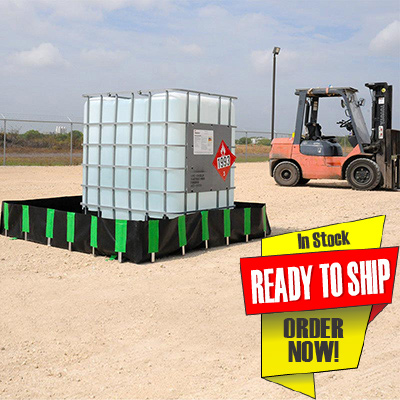

The Economy Model Spill Berm is made from durable Copolymer-2000 material and is an affordable, lightweight, durable spill containment solution for construction sites, facilities, and jobsites. Rigid sidewalls are reinforced by L-shaped aluminum brackets that are easily and quickly inserted into sleeves around the perimeter of the spill berm. This economical spill berm gives you containment for frac tanks, larger machinery, 55-gallon drums, IBCs and much more. The Economy Model Spill Berm is space conscious as well. There are no frames, components or excess materials outside of the sidewalls or frame, making it great for spill containment inside of sheds and buildings where space is limited. The Economy Spill Berm will keep you in compliance with EPA 40 CFR 264.175 Containment of Containers Containing Free Liquid and SPCC - Spill Prevention, Control and Countermeasure Act.
Ultra Containment berm Economy Models Specs
|Part #||Dimensions ft. (m)||Capacity Gal. (L)||Weight lbs. (kg)|
|UltraTech 8250||6 x 4 x 1 (1.8 x 1.2 x .3)||179 (677.6)||21 (9.5)|
|UltraTech 8251||6 x 6 x 1 (1.8 x 1.8 x .3)||269 (1018.3)||26 (11.8)|
|UltraTech 8252||10 x 10 x 1 (3 x 3 x .3)||748 (2831.5)||52 (23.6)|
|UltraTech 8270||20 x 10 x 1 (6.1 x 3 x .3)||1496 (5663)||88 (39.9)|
|UltraTech 8271||30 x 10 x 1 (9.1 x 3 x .3)||2244 (8494.5)||124 (56.2)|
|UltraTech 8272||40 x 10 x 1 (12.2 x 3 x .3)||2992 (11326)||160 (72.6)|
|UltraTech 8273||50 x 10 x 1 (15.2 x 3 x .3)||3740 (14157.4)||196 (88.9)|
|UltraTech 8274||12 x 12 x 1 (3.7 x 3.7 x .3)||1077 (4076.9)||69 (31.3)|
|UltraTech 8275||20 x 12 x 1 (6.1 x 3.7 x .3)||1795 (6794.8)||102 (46.3)|
|UltraTech 8276||30 x 12 x 1 (9.1 x 3.7 x .3)||2692 (10190.3)||144 (65.3)|
|UltraTech 8277||40 x 12 x 1 (12.2 x 3.7 x .3)||3590 (13589.6)||185 (83.9)|
|UltraTech 8278||50 x 12 x 1 (15.2 x 3.7 x .3)||4488 (16988.9)||227 (103)|
|UltraTech 8253||60 x 12 x 1 (18.3 x 3.7 x .3)||5385 (20384.4)||268 (121.6)|
|UltraTech 8279||15 x 15 x 1 (4.6 x 4.6 x .3)||1683 (6370.8)||95 (43.1)|
|UltraTech 8280||20 x 15 x 1 (6.1 x 4.6 x .3)||2244 (8494.5)||118 (53.5)|
|UltraTech 8281||30 x 15 x 1 (9.1 x 4.6 x .3)||3366 (12741.7)||165 (74.8)|
|UltraTech 8282||40 x 15 x 1 (12.2 x 4.6 x .3)||4488 (16988.9)||212 (96.2)|
|UltraTech 8254||50 x 15 x 1 (15.2 x 4.6 x .3)||5610 (21236.2)||259 (117.5)|
|UltraTech 8255||66 x 15 x 1 (20.1 x 4.6 x .3)||7405 (28031)||334 (151.5)|
COPOLYMER-2000 MATERIAL SPECS
|Base Fabric Type||Polyester||-||-|
|Base Fabric Weight (nominal)||3.0 oz/yd2||102 g/m2||-|
|Finished Coated Weight||28.0 ± 2 oz/yd2||950 ± 70 g/m2||ASTM D751|
|Thickness||30 mils nominal||0.76 mm nominal||ASTM D751|
|Trapezoid Tear||30/30 lbf nominal||133/133 N nominal||ASTM D4533|
|Grab Tensile||250/200 lbf min||1112/890 N min.||ASTM D751 Grab Method|
|Hydrostatic Resistance||300 psi min||2.06 MPa min||ASTM D751, Procedure A|
|Adhesion||10 lbf/in min||9.0 daN/5 cm min.||ASTM D751 Dielectric Seam|
|Cold Crack||Pass @ -25° F||Pass @ -32° C||ASTM D2136 1/8 in mandrel, 4 hr.|
|Puncture Resistance||50 lbf typical||225 N typical||ASTM D4833|
|Dead Load||2 in seam, 4 hr, 1 in strip
100 lbf @ 70° F
50 lbf @ 160° F
|5 cm seam, 4 hr, 2.5 cm strip
445 N @ 21° C
220 N @ 70° C
Economical Spill Containment Berm Applications
The Economy Model Spill Berm is designed to be space-saving, money-saving and totally dependable as a spill containment solution. While it is not a drive-over spill berm that sees a lot of vehicular traffic or attention day-to-day, it will hold and contain your tanks, drums, containers, machinery, and more, keeping you in compliance with EPA and SPCC regulations. You can use the Economy Model spill berm outdoors or indoors.
Wherever you decide to deploy the Economy Model spill berm, please consult these steps when setting up the berm.
- STEP1: Select a level area and be sure that ground is swept clean of debris and sharp objects. The use of a ground cloth is recommended to prevent puncturing from underneath the Berm.

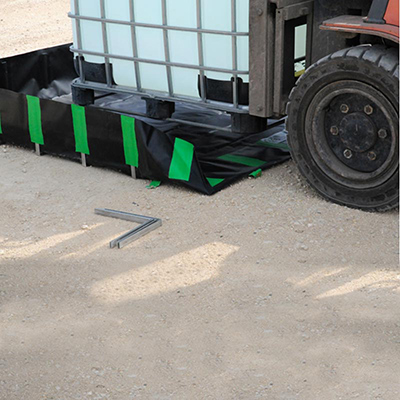

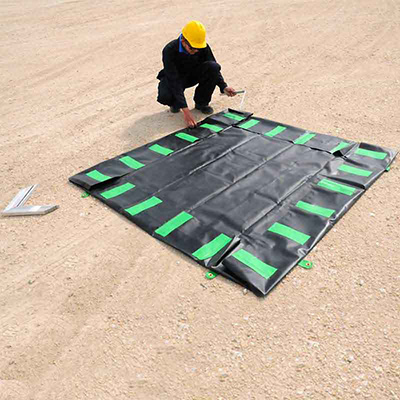

- STEP2: Place the folded Berm on the tarp at the setup location. Do not drag the folded berm. Unfold Berm and position as desired. Slide L-brackets into the Berm pockets.
- STEP3: If tread protectors are being used, place these in the unit at this time.
The spill containment berm accessories you can use for your spill containment berm are the Track Belts, Ground Cloth and the Ultra Berm Repair Kit. The Track Belts are placed over the berm as vehicles and machinery enters the berm. This is to protect the berm surface from scrapes and tears. For the Economy Model spill berm, these track belts can be removed once the sidewalls are set up. The Ground Cloth is a great accessory to use underneath the spill containment berm to protect it from anything on the ground that you might have missed that could puncture the berm. The Ultra Berm Repair Kit, however, comes with various tools and patches to help you fix any issues with the material.
UltraTech Spill Berm FAQs
The Economy Model Spill Berm Kit, as the name suggests, is an economical, budget-friendly option for spill containment needs and projects. While the Economy Model might not have the features that other spill berms have, like the ability to be drive over while in use, or foam walls, or other features, the Economy Model spill berm will contain your tanks and drums for long periods of time and is space-conscious for spill containment in sheds and other buildings where space is limited. The most requested size is the Ultratech 8250, but it is available in a full range of sizes and custom sizes can also be considered to fit your project. If you're interested in other styles of spill berm, see our Drive-Over Spill Berms and our Specialty Spill Berms.
The Ultra Berm Repair Kit includes everything you need to make most repairs to the material of your spill berm. The patching kit includes a tool box, an industrial heat gun, hand roller, replacement handles (if applicable), and 50 of three types of patches.
