Ultra Berm Builder Spill Barrier Kit
Ultra Berm Builder
The Ultra Berm Builder lets you create a custom spill containment area around fixed or heavy equipment. Use it to form a barrier directly on your facility floor, ideal for machinery that cannot be moved. The Ultra Berm Builder and Ultra Berm Builder Plus help contain leaks, drips, and spills to protect your workspace and support compliance. Installation is simple with adhesive and sealant included. This system offers a flexible solution for manufacturing floors, warehouses, and maintenance shops.
Ultra Berm Builder Details
Ultra Berm Builder and Ultra Berm Builder Plus provide spill containment solutions for large, heavy, or stationary equipment. Both options create a barrier that helps protect your facility from leaks and spills around hard-to-move machinery.
Ultra Berm Builder (Standard Model)
The Ultra Berm Builder is constructed from cut-to-length vinyl covering an open-cell foam core. The berm is secured directly to the floor with sealant, and seams are finished using a vinyl adhesive. This model is suitable for areas with light equipment traffic and can be stepped on or crossed with smaller machinery.

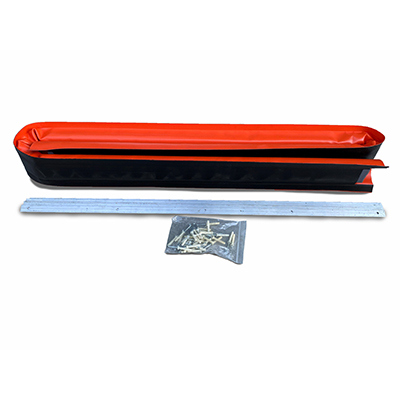

Ultra Berm Builder Plus
The Ultra Berm Builder Plus also features an open-cell foam core wrapped in vinyl. In addition to sealant, it includes pre-drilled aluminum mounting strips and steel anchors for added strength. This version is designed for environments with heavy foot traffic, forklift use, and vehicle crossings. It offers a more permanent installation for demanding workspaces. The Plus model includes mounting strips and steel anchors; sealant is sold separately.
Ultra Rubber Berm Builder Features
- Standard Model: 18 oz. Vinyl & Plus Model: 40 oz. Vinyl
- Open-Cell Foam Core That Compresses
- Standard Model: Adhesive Installation
- Plus Model: Adhesive and Aluminum Mounting Strip Installation
Ultra Rubber Berm Builder Benefits
- Custom Spill Containment Location
- Semi-Permanent Berm
- Easy to Install and Remove
General Specifications for the Ultra Berm Builder - Components for 2" Model
| Part # | Model | Quantity | Dimensions ft. (m) | Weight lbs. (kg) |
|---|---|---|---|---|
| UltraTech 8640 | Full Kit* | 1/box | 300 x 5.5 x 2 (7620 x 139.7 x 50.8) | 21 (9.5) |
| UltraTech 8641 | Extension Piece | 1/box | 180 x 5.5 x 2 (4572 x 139.7 x 50.8) | 6 (2.7) |
| UltraTech 8642 | Corner | 2/box | 11 x 5.5 x 2 (279.4 x 139.7 x 50.8) | 2 (.9) |
| UltraTech 8643 | Connecting Collar | 1/box | 120 x 4 x 0 (3048 x 101.6 x 0) | 1 (.5) |
General Specifications for the Ultra Berm Builder - Components for 4" Model
| Part # | Model | Quantity | Dimensions ft. (m) | Weight lbs. (kg) |
|---|---|---|---|---|
| UltraTech 8674 | Wall Section | 2/box | 66 x 7.25 x 4 (1676.4 x 184.15 x101.6) | 60 (27.2) |
| UltraTech 8675 | Corner | 2/box | 12 x 7.25 x 4 (1676.4 x 184.15 x 101.6) | 3.0 (1.4) |
| UltraTech 8676 | Wall End | 2/box | 7 x 7.25 x 4 (177.8 x 184.15 x 152.4) | 2 (0.9) |
General Specifications for the Ultra Berm Builder - Components for 6" Model
| Part # | Model | Quantity | Dimensions ft. (m) | Weight lbs. (kg) |
|---|---|---|---|---|
| UltraTech 8677 | Wall Section | 2/box | 66 x 9 x 6 (1676 x 228.6 x 152.4) | 9 (4.08) |
| UltraTech 8678 | Corner | 2/box | 15 x 9 x 6 (381 x 228.6 x 152.4) | 3.0 (1.4) |
| UltraTech 8679 | Wall End | 2/box | 7 x 9 x 6 (177.8 x 228.6 x 50.8) | 2 (0.9) |
General Specifications for the Ultra Berm Builder Options
| Part # | Model | Quantity | Dimensions ft. (m) | Weight lbs. (kg) |
|---|---|---|---|---|
| UltraTech 8644 | Floor Sealant | 6/box | N/A | 1 (.5) |
| UltraTech 8645 | Vinyl Adhesive | 1/box | N/A | .5 (.2) |
| UltraTech 8669 | Barrier Repair Material | 1/box | 120 x 4 x 0 (3048 x 101.6 x 0) | 1 (0.5) |
General Specifications for the Ultra Berm Builder Plus Model - Components for 2" Model
| Part # | Model | Quantity | Dimensions ft. (m) | Weight lbs. (kg) |
|---|---|---|---|---|
| UltraTech 8671 | Straight Wall Section | 1/box | 144 x 5.5 x 2 (3657.6 x 139.7 x 50.8) | 11.50 (5.22) |
| UltraTech 8672 | Corner | 2/box | 11.3 x 5.5 x 2 (285.8 x 139.7 x 50.8) | 2 (0.9) |
| UltraTech 8673 | Wall End | 2/box | 3 x 5.5 x 2 (76.2 x 139.7 x 50.8) | 2 (0.9) |
Each Ultra Berm Builder Plus Model includes Mounting Strips and Anchors.
General Specifications for the Ultra Berm Builder and Ultra Berm Builder Plus
| Color | Yellow (Standard) Orange (Plus Model) |
|---|---|
| Barrier Type | Vinyl Berm |
| Install/Deploy Type | Glued In Place Barrier Predrilled Aluminum Mounting Strips (Plus Model) |
| Intended Use | For Smooth Surfaces; Walk-On |
| Max Exposure Limit | 225°F for up to 30 Minutes |
| Storage Temp Range | Store Between 0°F and 120°F |
| Temperature Limit | Works from -22°F to 160°F |
| # per Pallet | 5 |
| Composition Cover, Seam Mender | 18 oz. Vinyl-Coated Fabric Core 40 oz. Vinyl (Plus Model) |
| Polyurethane Foam Sealant | Sili-Thane™ 803 Sealant |
| Shelf life | 365 days |
Berm Builder Spill Control Berm Downloads
Ultra Spill Berm Builder and Berm Builder Plus Applications
Ultra Berm Builder and Ultra Berm Builder Plus are designed for use on flat, smooth, sealed surfaces. This ensures the vinyl and sealant can bond securely to the floor, creating a reliable seal that prevents liquids from escaping the containment area.
These systems are ideal for indoor environments where heavy equipment or machinery cannot be easily placed inside traditional spill berms. The Ultra Berm Builder is suited for temporary containment needs, while Ultra Berm Builder Plus is recommended for more permanent applications.
Both options allow for vehicle and foot traffic. The foam walls can be stepped on or driven over, providing easy access to the containment zone when needed. For facilities with sealed, hard floors, Ultra Berm Builder systems offer a flexible way to build custom spill containment areas that match your specific equipment layout.
- Manufacturing plants
- Warehouses and distribution centers
- Maintenance facilities
- Equipment storage areas
- Indoor chemical processing zones
- Workshops with sealed floors
- Areas with forklift or vehicle traffic
Spill Containment Barriers FAQs
While the Ultra Berm Builder and Ultra Berm Builder Plus are meant to be more of a permanent spill containment berm area, it can be removed if you'd like to remove it. The standard Ultra Berm Builder can be removed with a flat-bladed shovel. The Ultra Berm Builder Plus can be removed by first removing the screws in the mounting strips and then using a flat-bladed shovel to remove the vinyl portion of the berm.
You can use the Ultra Berm Builder and Ultra Berm Builder Plus on flat, hard surfaces that are smooth and free of obstructions. Usually this concrete, asphalt, and most sealed areas.
