Ultra Ground Tarp & Track Belt
Tarp Protection for Spill Berms
Protect your spill containment berms from harsh site conditions with heavy duty ground tarps and track belts. Designed to shield berm liners from damage caused by vehicle traffic, abrasive equipment, and rugged terrain, these Spill Containment Accessories. help extend the life of your containment systems while reducing costly repairs.

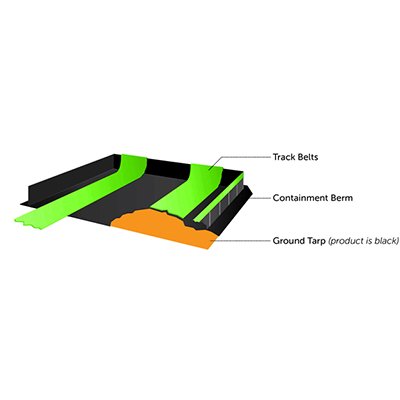

Ultra Ground Tarp Plus covers both the floor and sidewalls of the berm for complete protection. Track belts provide focused reinforcement for high-traffic areas, such as entry and exit points. Both options are compatible with a range of berm types, including steel wall, aluminum frame, foam wall, and drive-through spill berms.
Let our friendly experts match you with the right product!
Heavy Duty Ground Tarp & Track Belt Details

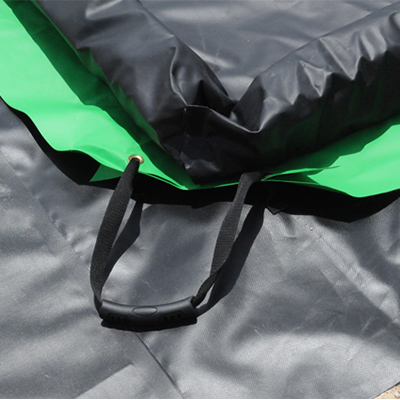

Use Ultra Heavy Duty Ground Tarps beneath a spill berm to prevent puncture, tears and rips that can occur from rocks or debris in the ground below. Place your Ultra Ground Tarp on the ground first, then the spill berm on top. For best tarp protection, select an Ultra Ground Tarp size that's 1 to 4 feet larger than the berm itself.
Heavy Duty Ground Tarp & Track Belt Features
- Prevent liner abrasion from tires, equipment, and debris
- Order Separately or as a Package
- Strong and Durable
Heavy Duty Ground Tarp & Track Belt Benefits
- Minimize the risk of punctures or premature liner wear
- Simplify cleanup after spills or equipment use
- Pre-Attached Option for Fast Installation
Ultra Ground Tarp Plus is used the same way as the Ultra Heavy Duty Ground Tarp, but can take even more pressure and abuse. In addition to providing even more protection, it also has an absorbent top layer to capture any drips or spills that can happen on the jobsite. It consists of 3 barrier films sandwiched between two layers of needle-punched geotextile with heat fused surfaces. However, it installs as a single layer, eliminating the common problems with multiple-layer installation. The Ultra Ground Tarp Plus offers 3X more tear protection and 5X more puncture protection than the standard 30 mil HDPE liners, and it won't stretch or crack like HDPE. Additionally, the high traction surface guards against slipping injuries.

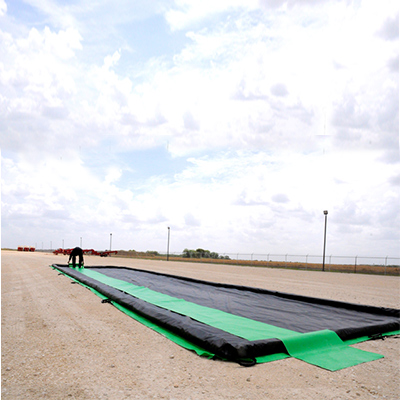

Ultra Track Belts protect your spill berm from wear and damage caused by trucks or equipment driving over the spill berm. While sturdy and built for this purpose, with tens of thousands of pounds of weight driving over the berms on a regular basis, even the toughest fabrics can be put to the test. The Ultra Track Belts act as a buffer between the vehicle's tires and the spill berm. When wear does happen, it will be to the track belt, not the spill berm. Track belts are easily replaceable as needed.
While these components can be ordered separately, you also can choose to order them as an "All in One" where they are pre-attached (heat-sealed or welded). This provides the additional benefit of having them already in place when you set up the spill berm. Note: The "All in One" is not available for the Economy Model of the Ultra Containment Berm.
Ultra Ground Tarp Specs
| Part # | Model | Dimensions ft. (m) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8311 | For all 4' x 6', 6' x 6', and 10' x 10' Ultra-Containment Berms | 11 x 11 x 0 (3.4 x 3.4 x 0) | 16 (7.3) |
| UltraTech 8322 | For all 12' x 60' Ultra-Containment Berms | 64 x 16 x 0 (19.5 x 4.9 x 0) | 128 (58.1) |
| UltraTech 8338 | For all 15' x 50' Ultra-Containment Berms | 54 x 19 x 0 (16.5 x 5.8 x 0) | 152 (68.9) |
| UltraTech 8334 | For all 15' x 66' Ultra-Containment Berms | 70 x 19 x 0 (21.3 x 5.8 x 0 | 167 (75.7) |
Ultra Ground Tarps Plus -130 mi
| Part # | Model | Dimensions ft. (m) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8492 | Plus Model | 22 x 12.3 x 0 (6.7 x 3.7 x 0) | 54 (25) |
| UltraTech 8493 | Plus Model | 32 x 12.3 x 0 (9.8 x 3.7 x 0) | 79 (36) |
| UltraTech 8494 | Plus Model | 52 x 12.3 x 0 (15.8 x 3.7 x 0) | 129 (58) |
| UltraTech 8495 | Plus Model | 62 x 12.3 x 0 (18.9 x 3.7 x 0) | 153 (70) |
| UltraTech 8497 | Plus Model | 450 x 12.3 x 0 (137.2 x 3.7 x 0) | 1,130 (513) |
| UltraTech 8496 | Plus Model - CUSTOM SIZE | N/A | N/A |
Track Belts
| Part # | Model | Dimensions ft. (m) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8343 | Track Belt (Set of 2) - 18 oz. PVC | 56 x 2.5 x .2 (17.1 x .8 x .1) | 144 (65.3) |
| UltraTech 8344 | Track Belt (Set of 2) - 18 oz. PVC | 66 x 2.5 x .2 (20.1 x .8 x .1) | 173 (78.5) |
| UltraTech 8345 | Track Belt (Set of 2) - 18 oz. PVC | 72 x 2.5 x .2 (21.9 x .8 x .1) | 190 (86.2) |
Ultra Ground Tarp Plus Specs
| Composition | Polypropylene |
|---|---|
| Color | Dark Gray |
| UV Resistant | Yes |
| Master Roll Width | 12' (3.7 m) |
| Thickness | 130 mil |
| Approximate Roll Length | 450' (137.2 m) |
| Approximate Roll Weight | 1,100 lbs. (499.0 kg) |
| Core dia. | 4" (10.2 cm) |
| Recyclable | Yes |
Testing Information
| Material | Testing Property | Test Method | Value |
|---|---|---|---|
| Ultra-Ground Tarp Plus - 130 mil | Thickness | ASTM D 5994 | 144 Mils |
| Ultra-Ground Tarp Plus - 130 mil | Tensile Properties (Max Strength) | ASTM D 6693/GRI, 2 ipm rate | 161 A-Break lb/in-width 100 B-Break lb/in-width |
| Ultra-Ground Tarp Plus - 130 mil | Puncture Resistance | ASTM D 4833 | 272 (lbs.) |
| Ultra-Ground Tarp Plus - 130 mil | Tear Resistance | ASTM D 1004 | 67 A 59 B |
Top Side Absorbency: Water = 3.31 gal./100 sq. ft.; Oil = 3.42 gal./100 sq. ft
Permittivity (ASTM D 4491) = 0
Calculated Darcy Coefficient of Permeability = 0
Ultra Containment Berm Ground Tarp and Track Belt Specs
| Method | Typical Values | |
|---|---|---|
| Total Weight | FS 5040/ASTM D3776 | 18.5 oz. per sq. yd. |
| Width | 61" | |
| Material | Polyester Blended PVC | |
| Count | 18 x 17 | |
| Denier | 1000 x 1300 | |
| Grab Tensile | FS 5100 / ASTM D5034 | 375 x 375 lbs./in. |
| Tongue Tear | FS5134 / ASTM D2261 | 100 x 100 lbs |
| Adhesion | FS 5970 / ASTM D751 | 26 lbs./2" |
| Cold Crack | FS 5874 | -20°F |
| Treatments | Anti-Mildew. UV Pigments | |
| Finish | Matte | |
| Putup | 100 yards | |
| Color | Ground Tarp: Black. Track Belts: Green. |
Heavy Duty Ground Tarp & Track Belt Applications
Ultra Ground Tarps and Track Belts are recommended for heavy duty use of spill berms. The Ultra Ground Tarp protects spill berms from underlying hazards that could puncture the berm from below. The Ultra Ground Tarp Plus is recommended for more treacherous and rugged terrain, such as oilfields, where there are more and larger rocks and debris that could pose a risk to your spill berm. Additionally, the Ultra Ground Tarp Plus features a spill absorbent layer. The Ultra Track Belt provides a protective layer to prevent drive-through spill berm wear from heavy equipment or vehicle traffic. When wear and tear happens on the jobsite, it will be to the track belts, and you'll only need to replace them (instead of the spill berm).
It's also good to keep an Ultra-Berm Repair Kit on hand, on the jobsite. No matter how careful one is, accidents can happen. Keeping a repair kit on hand not only minimizes jobsite down time when that happens, but fixing tears quickly helps avoid additional damage to the spill berm. The Ultra Berm Repair Kit contains everything needed to make most repairs and is customized to the type of spill berm needed.
Compact Model Spill Containment Berms FAQs
Yes! Both the Ultra Ground Tarp and the Ultra Ground Tarp Plus are available in custom sizes.
The Ultra Ground Tarp is popular in jobsites with average conditions, where the ground is smooth and there's minimal rocks or debris. The Ultra Ground Tarp Plus is typically used in more rigorous jobs, such as oilfields, where larger or sharper rocks and debris are common. The Plus model also incorporates an absorbent layer to capture any minor drips or spills.
Yes! Track belts can be ordered separately. Call us for assistance!
