Spill Containment Barriers
Rapid Rise Containment Berm
Ultra Spill Containment Berms like the Rapid Rise Model give you drive in/drive out convenience, while providing secure sidewall protection against spills when needed. One of the main benefits to the Rapid Rise Spill Containment Barrier is that the sidewalls rise as spills occur, safely containing the spill and keeping it out of your way during normal, day-to-day operations. Choose from either Copolymer 2000 or 22 oz. PVC materials to fit the jobsite needs for your spill containment barriers. Custom sizes are available upon request. The Rapid Rise containment berm helps comply with SPCC and EPA spill regulations. Read below for more in-depth information or call us at 863-261-8388.
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Rapid Rise Spill Containment Berm Features
- Self-Rising Berm Walls
- Built-In Struts for Support
- Built-In Handles for Transport and Placement
Rapid Rise Spill Containment Berm Benefits
- Easy Drive-In and Drive-Out Functions
- Out-of-the-Way Sidewalls Without Spills
- Custom Sizing Available
Want to see how our different spill berms work? Watch our videos below for more information.
Spill Berms Details
Rapid Rise Spill Berm Video

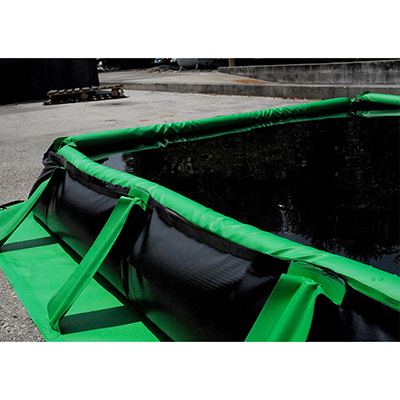

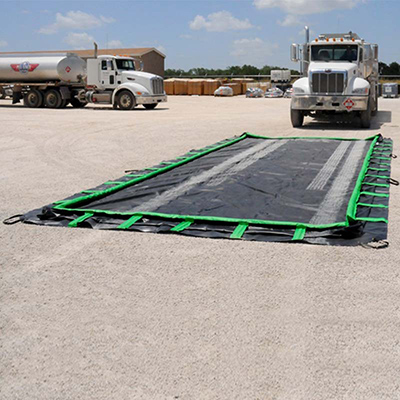

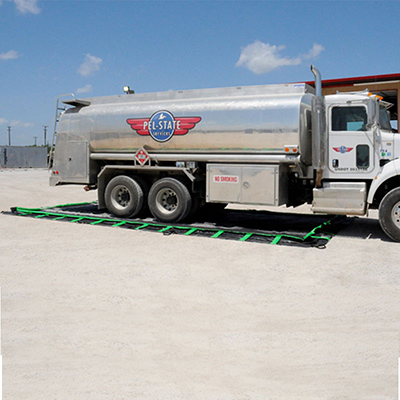

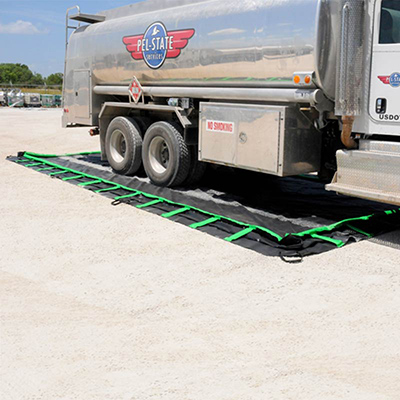

The Ultra Containment Berm Rapid Rise Models provide drive-over spill containment that is very effective in keeping spills contained starting with the very moment they occur. When there are no spills, the sidewalls stay out of your way, allowing vehicles and machinery or equipment to easily enter. The spill containment barriers also provide quick and easy spill and leak containment for 55-gallon drums, IBCs, frac tanks, and other larger pieces of stationary equipment. Standard materials for the Ultra Containment Berm Rapid Rise Model are PVC and Copolymer 2000. The entire berm will lay flat unless a leak or spill occurs. The foam ring at the top of the berm will rise with the liquid level. Because the Rapid Rise spill Berm lies flat, there is little worry of tripping hazards and no need to lower the walls for vehicles and machinery to enter. There's no setup required for this spill containment barrier. The built-in struts around the perimeter of the spill containment berm provide addition support when the liquid level is high.
'Drive Over' Rapid Rise Spill Containment Barriers Specs
| Part # | Dimensions ft. (m) | Capacity Gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8430 | 6 x 4 x 1 (1.8 x 1.2 x .3) | 179 (677.6) | 29 (13.2) |
| UltraTech 8431 | 6 x 6 x 1 (1.8 x 1.8 x .3) | 269 (1018.3) | 35 (15.9) |
| UltraTech 8432 | 10 x 10 x 1 (3 x 3 x .3) | 748 (2831.5) | 63 (28.6) |
| UltraTech 8710 | 12 x 12 x 1 (3.7 x 3.7 x .3) | 1077 (4076.9) | 85 (38.6) |
| UltraTech 8437 | 26 x 12 x 1 (7.9 x 3.7 x .3) | 2333 (8831.4) | 149 (67.6) |
| UltraTech 8711 | 30 x 12 x 1 (9.1 x 3.7 x .3) | 2692 (10190.3) | 171 (77.6) |
| UltraTech 8712 | 40 x 12 x 1 (12.2 x 3.7 x .3) | 3590 (13589.6) | 218 (98.9) |
| UltraTech 8713 | 50 x 12 x 1 (15.2 x 3.7 x .3) | 4488 (16988.9) | 266 (120.7) |
| UltraTech 8714 | 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 313 (142) |
| UltraTech 8715 | 72 x 12 x 1 (21.9 x 3.7 x .3) | 6462 (24461.3) | 370 (167.8) |
| UltraTech 8716 | 15 x 15 x 1 (4.6 x 4.6 x .3) | 1683 (6370.8) | 115 (52.2) |
| UltraTech 8717 | 20 x 15 x 1 (6.1 x 4.6 x .3) | 2244 (8494.5) | 141 (64) |
| UltraTech 8718 | 30 x 15 x 1 (9.1 x 4.6 x .3) | 3366 (12741.7) | 195 (88.5) |
| UltraTech 8719 | 40 x 15 x 1 (12.2 x 4.6 x .3) | 4488 (16988.9) | 248 (112.5) |
| UltraTech 8433 | 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 278 (126.1) |
| UltraTech 8720 | 60 x 15 x 1 (18.3 x 4.6 x .3) | 6732 (25483.4) | 356 (161.5) |
| UltraTech 8434 | 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 357 (161.9) |
| UltraTech 8721 | 72 x 15 x 1 (21.9 x 4.6 x .3) | 8078 (30578.6) | 420 (190.5) |
Ultra-Containment Berms - Rapid-Rise Models - PVC 22 oz.
| Part # | Dimensions ft. (m) | Capacity Gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8654 | 6 x 4 x 1 (1.8 x 1.2 x .3) | 179 (677.6) | 24 (10.9) |
| UltraTech 8630 | 6 x 6 x 1 (1.8 x 1.8 x .3) | 269 (1018.3) | 34 (15.4) |
| UltraTech 8631 | 10 x 10 x 1 (3 x 3 x .3) | 748 (2831.5) | 57 (25.9) |
| UltraTech 8655 | 12 x 12 x 1 (3.7 x 3.7 x .3) | 1077 (4076.9) | 66 (29.9) |
| UltraTech 8656 | 26 x 12 x 1 (7.9 x 3.7 x .3) | 2333 (8831.4) | 118 (53.5) |
| UltraTech 8632 | 30 x 12 x 1 (9.1 x 3.7 x .3) | 2692 (10190.3) | 210 (95.3) |
| UltraTech 8712 | 40 x 12 x 1 (12.2 x 3.7 x .3) | 3590 (13589.6) | 218 (98.9) |
| UltraTech 8657 | 40 x 12 x 1 (12.2 x 3.7 x .3) | 3590 (13589.6)) | 170 (77.1) |
| UltraTech 8633 | 50 x 12 x 1 (15.2 x 3.7 x .3) | 4488 (16988.9) | 265 (120.2) |
| UltraTech 8658 | 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 244 (110.7) |
| UltraTech 8659 | 72 x 12 x 1 (21.9 x 3.7 x .3) | 6462 (24461.3) | 288 (130.6) |
| UltraTech 8660 | 15 x 15 x 1 (4.6 x 4.6 x .3) | 1683 (6370.8) | 93 (42.2) |
| UltraTech 8661 | 20 x 15 x 1 (6.1 x 4.6 x .3) | 2244 (8494.5) | 114 (51.7) |
| UltraTech 8662 | 30 x 15 x 1 (9.1 x 4.6 x .3) | 3366 (12741.7) | 158 (71.7) |
| UltraTech 8663 | 40 x 15 x 1 (12.2 x 4.6 x .3) | 4488 (16988.9) | 201 (91.2) |
| UltraTech 8664 | 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 244 (110.7) |
| UltraTech 8665 | 60 x 15 x 1 (18.3 x 4.6 x .3) | 6732 (25483.4) | 286 (129.7) |
| UltraTech 8666 | 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 313 (142) |
| UltraTech 8667 | 72 x 15 x 1 (21.9 x 4.6 x .3) | 8078 (30578.6) | 338 (153.3) |
PVC Materials Specs
| Material | English | Metric | Testing Method |
|---|---|---|---|
| Weight | 22 oz./yd2 | 745 g/m2 | FS 5040 / ASTM D3776 |
| Width | up to 126" | up to 320 cm | - |
| Count | 18 x 16/1" | 7 x 7/cm | - |
| Denier | 1300 x 1500 | 1430 x 1650 | - |
| Grab Tensile | 459 x 418 lbs./1" | 2042 x 1859 N/2.5 cm | FS 5100 / ASTM D5034 |
| Tongue Tear | 140 x 150 lbs./1" | 623 x 667 N/2.5 cm | FS 5134 / ASTM 2261 |
| Adhesion | 22 lbs./2" | 98 N/5 cm | FS 5970 / ASTM D751 |
| Finish | Matte | - | - |
| Cold Crack | -300F | -340C | FS 5874 / ASTM D2136 |
| Treatments | Anti-Mildew, UV Pigments | - | - |
| Put-Up | 75 yds | 69 m |
COPOLYMER-2000 MATERIAL SPECS
| Reinforced | English | Metric | Testing Method |
|---|---|---|---|
| Base Fabric Type | Polyester | - | - |
| Base Fabric Weight (nominal) | 3.0 oz/yd2 | 102 g/m2 | - |
| Finished Coated Weight | 28.0 ± 2 oz/yd2 | 950 ± 70 g/m2 | ASTM D751 |
| Thickness | 30 mils nominal | 0.76 mm nominal | ASTM D751 |
| Trapezoid Tear | 30/30 lbf nominal | 133/133 N nominal | ASTM D4533 |
| Grab Tensile | 250/200 lbf min | 1112/890 N min. | ASTM D751 Grab Method |
| Hydrostatic Resistance | 300 psi min | 2.06 MPa min | ASTM D751, Procedure A |
| Adhesion | 10 lbf/in min | 9.0 daN/5 cm min. | ASTM D751 Dielectric Seam |
| Cold Crack | Pass @ -25° F | Pass @ -32° C | ASTM D2136 1/8 in mandrel, 4 hr. |
| Puncture Resistance | 50 lbf typical | 225 N typical | ASTM D4833 |
| Dead Load | 2 in seam, 4 hr, 1 in strip 100 lbf @ 70° F 50 lbf @ 160° F |
5 cm seam, 4 hr, 2.5 cm strip 445 N @ 21° C 220 N @ 70° C |
ASTM D751 |
Spill Containment Barrier Installation and Applications
The Rapid Rise Spill Containment berm is great for jobsite and companies wanting drive-over spill protection that is out-of-the-way, unobtrusive, and easy to use. The materials used to construct the Rapid Rise Containment Berm are compatible with a wide range of chemicals, giving you more variety in terms of what you can hope to safely store on your spill containment berm. For more information, see the Chemical Compatibility document in the 'Downloads' section. Spill containment berm accessories add to the lifespan of the product, keeping it in good working condition despite the hazards of a jobsite. Some additional accessories include ground cloth, repair kit, and track belts.
Placing and installing the Rapid Rise Spill Containment is simple and easy. Select the area you wish to use and make sure it is level and free of debris and sharp objects that could puncture the spill containment berm. To ensure that your spill containment barrier is protected, use a ground cloth underneath the berm. Place the folded berm in the desired location. Carry it there by using the built-in handling straps; do not drag the berm. Once in place, unfold the berm and position it as you desire. If you are using tread protectors, you can put them in place at this time.
'Drive Over' Spill Containment Berm FAQs
In the event of a puncture or tear, you will need a Patching Kit to repair it. In order to receive the proper repair kit, call us and let us know what type of damage your berm has experienced. For patching holes, you will greatly benefit from the Ultra Berm Repair Kit, which includes a tool box, heat gun, hand roller, replacement handles, and assorted patches.
Additional accessories add to the protection of your spill containment berm and enhance your experience of it. Some recommended accessories include a ground tarp, track belts, and a repair kit. A ground tarp is helpful in placing underneath the spill containment berm to protect it from objects on the ground that could harm it. Track belts are strips made of heavy-duty reinforced PVC material that you lay down inside the berm. They take the bulk of the wear and tear that tires and vehicles have on driving in and out of the berm.
