Foam Wall Spill Containment Berms
Ultra Spill Containment Berms (Foam Wall Model)
Foam wall spill containment berms provide low profile, effective spill and leak containment for vehicles, oily equipment, machinery, 55-gallon drums, IBCs, and more. Made for smaller leaks and spills, the Foam Wall Model Spill Berm has 2-inch or 4-inch sidewalls made of durable foam, covered in either Copolymer 2000 or 22 oz. PVC material. There's no setup required. Simply unfold the spill containment berm and deploy it. It is easy to use in that you need only to drive-over the foam wall berm into the containment area for spill protection. For more information, Contact Us or Call Us at 863-261-8388. Watch our Foam Wall Model spill berm video below for more information as well.
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Foam Wall Spill Berms Features
- 2-Inch or 4-Inch Walls
- Copolymer or PVC Construction
- Built-In Handles for Easy Transport and Setup
Foam Wall Spill Berms Benefits
- Low-profile, Durable, Flexible Containment
- Capture Drips and Nuisance Leaks
- Drive-In and Drive-Out Capabilities
Want to see how our different spill berms work? Watch our videos below for more information.
Drive-Over Foam Wall Spill Containment Details
Foam Wall Spill Berm Video

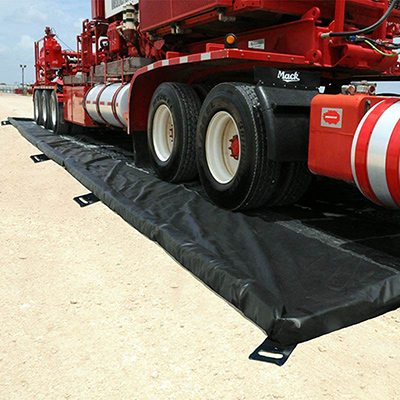

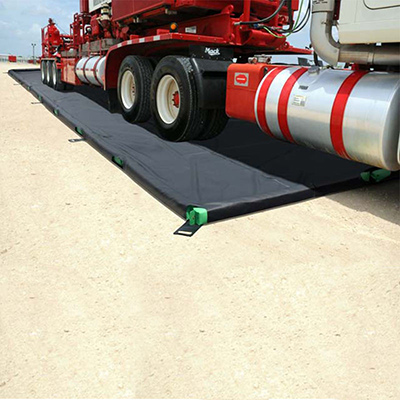

Drive-over spill containment berms allow you to easily enter and exit the spill berm in vehicles, machinery, and forklifts to store 55-gallon drums, IBCs, or broken pieces of equipment that need maintenance and repair. The Foam Wall Model spill berm is prefect for catching spills, leaks, and drips from machinery that is experiencing maintenance or repairs. The pliable, durable foam walls, compress when driven over, and the material that the spill berm is constructed from (either Copolymer 2000 or PVC) is rugged and keeps soil free from contamination. The Foam Wall Model drive-over spill berm keeps you in compliance with EPA Container Storage Regulation 40 CFR 264.175 and Spill Prevention, Control and Countermeasure Act (SPCC). The foam sidewalls come in either 2-inch or 4-inch heights. The built-in handles allow for easy and accessible transport from location to location, and set-up is incredibly easy. Simply carry the folded spill containment berm by the handles to the desired location, place on a clean, flat surface, free of debris, unfold and begin using.
Foam Wall Spill Berm Model Specs (2-Inch Walls)
| Part # | Dimensions ft. (m) | Capacity Gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8385 | 6 x 4 x .2 (1.8 x 1.2 x .1) | 25 (94.6) | 24 (10.9) |
| UltraTech 8386 | 8 x 6 x .2 (2.4 x 1.8 x .1) | 55 (208.2) | 30 (13.6) |
| UltraTech 8387 | 10 x 8 x .2 (3 x 2.4 x .1) | 88 (333.1) | 38 (17.2) |
Ultra-Containment Foam Wall Berms- (4-Inch Walls) - Copolymer 2000
| Part # | Dimensions ft. (m) | Capacity Gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8568 | 3 x 3 x .3 (.9 x .9 x .1) | 22 (83) | 20 (9.7) |
| UltraTech 8570 | 6 x 4 x .3 (1.8 x 1.2 x .1) | 59 (223.3) | 27 (12.2) |
| UltraTech 8571 | 8 x 8 x .3 (2.4 x 2.4 x .1) | 159 (601.9) | 45 (20.4) |
| UltraTech 8572 | 10 x 10 x .3 (3 x 3 x .1) | 249 (942.6) | 61 (27.7) |
| UltraTech 8573 | 20 x 10 x .3 (6.1 x 3 x .1) | 498 (1885.1) | 101 (45.8) |
| UltraTech 8574 | 30 x 10 x .3 (9.1 x 3 x .1) | 748 (2831.5) | 137 (62.1) |
| UltraTech 8575 | 40 x 10 x .3 (12.2 x 3 x .1) | 997 (3774.1) | 177 (80.3) |
| 8576 | 50 x 10 x .3 (15.2 x 3 x .1) | 1246 (4716.6) | 217 (98.4) |
| UltraTech 8577 | 12 x 12 x .3 (3.7 x 3.7 x .1) | 359 (1359) | 82 (37.2) |
| UltraTech 8578 | 16 x 12 x .3 (4.9 x 3.7 x .1) | 478 (1809.4) | 97 (44) |
| UltraTech 8579 | 20 x 12 x .3 (6.1 x 3.7 x .1) | 598 (2263.7) | 116 (52.6) |
| UltraTech 8580 | 30 x 12 x .3 (9.1 x 3.7 x .1) | 897 (3395.5) | 159 (72.1) |
| UltraTech 8581 | 35 x 12 x .3 (10.7 x 3.7 x .1) | 1047 (3963.3) | 184 (83.5) |
| UltraTech 8582 | 40 x 12 x .3 (12.2 x 3.7 x .1) | 1196 (4527.4) | 203 (92.1) |
| UltraTech 8583 | 50 x 12 x .3 (15.2 x 3.7 x .1) | 1496 (5663) | 249 (112.9) |
| UltraTech 8584 | 60 x 12 x .3 (18.3 x 3.7 x .1) | 1795 (6794.8) | 293 (132.9) |
| UltraTech 8585 | 72 x 12 x .3 (21.9 x 3.7 x .1) | 2154 (8153.8) | 348 (157.9) |
| UltraTech 8586 | 15 x 15 x .3 (4.6 x 4.6 x .1) | 561 (2123.6) | 104 (47.2) |
| UltraTech 8587 | 20 x 15 x .3 (6.1 x 4.6 x .1) | 748 (2831.5) | 132 (59.9) |
Ultra-Containment Foam Wall Berms- (4-Inch Walls) - PVC 22 oz.
| Part # | Dimensions ft. (m) | Capacity Gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| UltraTech 8465 | 3 x 3 x .3 (.9 x .9 x .1) | 22 (83) | 20 (9.7) |
| UltraTech 8466 | 4 x 4 x .3 (1.2 x 1.2 x .1) | 39 (148) | 11 (4.99) |
| UltraTech 8460 | 6 x 4 x .3 (1.8 x 1.2 x .1) | 59 (223.3) | 35 (15.9) |
| UltraTech 8461 | 8 x 8 x .3 (2.4 x 2.4 x .1) | 159 (601.9) | 45 (20.4) |
| UltraTech 8470 | 10 x 10 x .3 (3 x 3 x .1) | 249 (942.6) | 51 (23.1) |
| UltraTech 8471 | 20 x 10 x .3 (6.1 x 3 x .1) | 498 (1885.1) | 83 (37.6) |
| UltraTech 8472 | 30 x 10 x .3 (9.1 x 3 x .1) | 748 (2831.5) | 118 (53.5) |
| UltraTech 8473 | 40 x 10 x .3 (12.2 x 3 x .1) | 997 (3774.1) | 150 (68) |
| UltraTech 8474 | 50 x 10 x .3 (15.2 x 3 x .1) | 1246 (4716.6) | 182 (82.6) |
| UltraTech 8475 | 12 x 12 x .3 (3.7 x 3.7 x .1) | 359 (1359) | 63 (28.6) |
| UltraTech 8462 | 16 x 12 x .3 (4.9 x 3.7 x .1) | 478 (1809.4) | 75 (34) |
| UltraTech 8476 | 20 x 12 x .3 (6.1 x 3.7 x .1) | 598 (2263.7) | 88 (39.9) |
| UltraTech 8477 | 30 x 12 x .3 (9.1 x 3.7 x .1) | 897 (3395.5) | 120 (54.4) |
| UltraTech 8463 | 35 x 12 x .3 (10.7 x 3.7 x .1) | 1047 (3963.3) | 120 (54.4) |
| UltraTech 8478 | 40 x 12 x .3 (12.2 x 3.7 x .1)) | 1196 (4527.4) | 152 (68.9) |
| UltraTech 8464 | 50 x 12 x .3 (15.2 x 3.7 x .1) | 1496 (5663) | 149.90 (67.99) |
| UltraTech 8479 | 60 x 12 x .3 (18.3 x 3.7 x .1) | 1795 (6794.8) | 219 (99.3) |
| UltraTech 8480 | 72 x 12 x .3 (21.9 x 3.7 x .1) | 2154 (8153.8) | 260 (117.9) |
| UltraTech 8481 | 15 x 15 x .3 (4.6 x 4.6 x .1) | 561 (2123.6) | 86 (39) |
PVC Materials Specs
| Material | English | Metric | Testing Method |
|---|---|---|---|
| Weight | 22 oz./yd2 | 745 g/m2 | FS 5040 / ASTM D3776 |
| Width | up to 126" | up to 320 cm | - |
| Count | 18 x 16/1" | 7 x 7/cm | - |
| Denier | 1300 x 1500 | 1430 x 1650 | - |
| Grab Tensile | 459 x 418 lbs./1" | 2042 x 1859 N/2.5 cm | FS 5100 / ASTM D5034 |
| Tongue Tear | 140 x 150 lbs./1" | 623 x 667 N/2.5 cm | FS 5134 / ASTM 2261 |
| Adhesion | 22 lbs./2" | 98 N/5 cm | FS 5970 / ASTM D751 |
| Finish | Matte | - | - |
| Cold Crack | -300F | -340C | FS 5874 / ASTM D2136 |
| Treatments | Anti-Mildew, UV Pigments | - | - |
| Put-Up | 75 yds | 69 m |
COPOLYMER-2000 MATERIAL SPECS
| Reinforced | English | Metric | Testing Method |
|---|---|---|---|
| Base Fabric Type | Polyester | - | - |
| Base Fabric Weight (nominal) | 3.0 oz/yd2 | 102 g/m2 | - |
| Finished Coated Weight | 28.0 ± 2 oz/yd2 | 950 ± 70 g/m2 | ASTM D751 |
| Thickness | 30 mils nominal | 0.76 mm nominal | ASTM D751 |
| Trapezoid Tear | 30/30 lbf nominal | 133/133 N nominal | ASTM D4533 |
| Grab Tensile | 250/200 lbf min | 1112/890 N min. | ASTM D751 Grab Method |
| Hydrostatic Resistance | 300 psi min | 2.06 MPa min | ASTM D751, Procedure A |
| Adhesion | 10 lbf/in min | 9.0 daN/5 cm min. | ASTM D751 Dielectric Seam |
| Cold Crack | Pass @ -25° F | Pass @ -32° C | ASTM D2136 1/8 in mandrel, 4 hr. |
| Puncture Resistance | 50 lbf typical | 225 N typical | ASTM D4833 |
| Dead Load | 2 in seam, 4 hr, 1 in strip 100 lbf @ 70° F 50 lbf @ 160° F |
5 cm seam, 4 hr, 2.5 cm strip 445 N @ 21° C 220 N @ 70° C |
ASTM D751 |
Foam Wall Spill Containment Berm Applications
The Foam Wall Model Spill Berm can be used in many applications for spill containment, but it is especially useful as a drive-over or drive-through spill containment berm. Because of its shorter sidewalls, the Foam Wall Model is great for storing machinery that is undergoing maintenance or repairs. The Foam Wall spill berm can catch the little drips and leaks that may come out of your broken machinery. These leaks and drips matter and could cause you to be out of compliance with EPA regulations. The Foam Wall Model Spill Berm requires no rigorous setup. In your desired location, make sure the ground is flat and free of debris. Sweep the ground clear to anything could harm, tear, or puncture the spill berm. Simply unfold the spill containment berm for quick deployment on your jobsite.
Depending on your containment requirements, you might have questions about what chemicals are compatible with the spill containment berms that we carry. We have a full list of the chemicals that are compatible with the materials that we offer. Review the Containment Berm Chemical Compatibility Guide and see how your containment applications will work better with our spill containment berms.
Foam Wall Spill Berms FAQs
What if I don't see the chemical that I need to contain listed on your chemical compatibility guide?
If you don't see the chemical you're looking for listed on the chemical compatibility guide, then it has not been tested with our material. However, you can always give us a call, and we will work with our staff and knowledgeable personnel to provide you with answers. Additionally, we may be able to send you a testing kit for a 30-day immersion test of the chemical.
Using accessories with your spill containment berm is a great way to extend the life of your compliance tool and help your budget. If you're able to keep using the drive-over spill berm that you purchased for many spill containment projects, then over time you'll save money and you'll stay in compliance. The additional accessories we recommend are the ground cloth, track belts, and repair kit. The Ground Cloth will go underneath your spill containment berm and keep it safe from anything that might harm the bottom of it. The Track Belts are made from durable reinforced PVC fabric and take the brunt of the vehicular traffic wear and tear that comes from tires. The Repair Kit is essential if you find yourself with a damaged spill berm. You won't want to be without it if you need to repair a tear.
