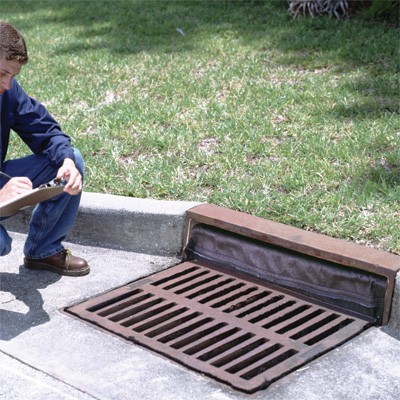

Ultra Curb Drain Guard Plus
Storm Drain Curb Inlet Guard Filter
Ultra Drain Guard Plus, Oil & Sediment and Curb-Insert Model protects combinations drains with dual openings. Both curb inlet and street drains are protected so that sediment, debris, and oils are filtered in these complicated combination drain designs. The heavy duty tension rods secure the Ultra Drain Guard inside the curb inlet while also stopping these pollutants from entering the storm drain grate portion.
We provide the best prices possible, fast shipping directly to you, and knowledgeable representatives to answer your questions. Call us at 863-261-8388 for more information about catch basin filter options or other Stormwater Management Products!
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Ultra Curb Drain Guard Features
- Fits Grate Sizes of 40"x40" and Curb Inlets 60" Wide

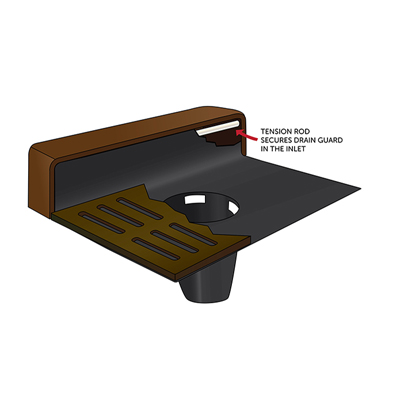

- Heavy Duty tension Rod Secures Ultra Drain Guard
- Material: Ultra-Filter-Tex
Ultra Curb Drain Guard Benefits
- Fits Most Combination Catch Basins
- Filters Both Oil and Sediment
- Hardware is Included
Ultra Drain Guard Plus Details
While combination drains that feature both a storm drain grate and a curb inlet are sometimes tricky to protect in a SWPPP, the Ultra-Drain Guard Plus protects them effortlessly. The heavy duty tension rods included with the product secure the drain guard inside the curb inlet, stopping sediment, debris, and filtering oil before it reaches the waterways. Ultra-Filter-Tex material removes oil and hydrocarbons fast and effectively. The Ultra Drain guard Plus Oil & Sediment, Curb Insert Model fits grate sizes up to 40"x40" and curb inlets up to 60" wide. The containment capacity of the largest Ultra Drain Guard Plus is 1.38 gallons or oil and hydrocarbons and up to 40 pounds of sediment.

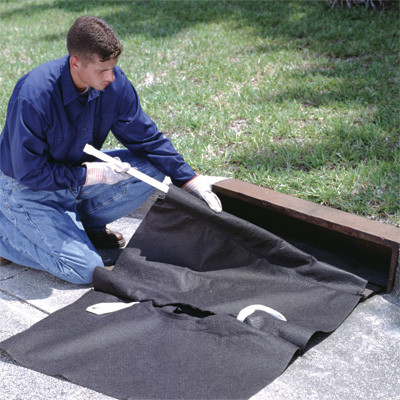

For this particular storm drain guard you will need to lift the grate out of the storm drain for installation and servicing. Luckily, we carry an array of storm drain grate lifters. From the Grate Hook to the Grate Lifter, you can easily remove the grate for the drain guard installation.
Storm Drain Curb Inlet Specs
| Part Number | Model | Dimensions in. (mm) | Containment Capacity gal. (L) | Weight Capacity UDL (lbs) | Weight lbs. (kg) |
|---|---|---|---|---|---|
| 9230 | Oil & Sediment, Curb-Insert Model | For Curb Inlets 24-42 (610-1067) | Up to .87 gallons (3.5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | 2 (.9) |
| 9231 | Oil & Sediment, Curb-Insert Model | For Curb Inlets 42-60 (1067-1524) | Up to .87 gallons (3.5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | 3 (1.4) |
| 9239 | Oil & Sediment, Curb-Insert Model | For Curb Inlets 24-42 (610-1067) | Up to 1.38 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | 3 (1.4) |
| 9240 | Oil & Sediment, Curb-Insert Model | For Curb Inlets 42-60 (1067-1524) | Up to 1.38 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment | 4 (1.8) |
Ultra-Filter-Tex Material Specifications
| Test | Method | Result |
|---|---|---|
| Mass Per Unit Area | ASTM 5261 | 11.0 (341.16) oz/yd. (g/m) |
| Grab Tensile MD | ASTM D-4632 | 118 (53.5) lbs (kg) |
| Grab Tensile TD | ASTM D-4632 | 89 (40.4) lbs (kg) |
| Elongation at Peak MD | ASTM D-4632 | 131 percent |
| Elongation at Peak TD | ASTM D-4632 | 172 percent |
| Wide Width Tensile MD | ASTM D-4595 | 33 (5.89) lbs/in (kg/cm) |
| Wide Width Tensile TD | ASTM D-4595 | 23 (4.11) lbs/in (kg/cm) |
| Elongation at Break MD | ASTM D-4595 | 110 percent |
| Elongation at Break TD | ASTM D-4595 | 156 percent |
| Mullen Burst | ASTM D-3786 | 214 (15) lbs/sq.in (kg/cm2) |
| Puncture Resistance | ASTM D-4833 | 72 (32.7) lbs (kg) |
| Trapezoid Tear Strength MD | ASTM D-4533 | 64 (29) lbs (kg) |
| Trapezoid Tear Strength TD | ASTM D-4533 | 45 (20.4) lbs (kg) |
| Permittivity(Constant Head) | ASTM D-4491 | 2.02 sec-1 |
| Permeability | ASTM D-4491 | 0.72 cm/sec |
| Flow Rate | ASTM D-4491 | 151 (6152)gal/ft2/min. (l/m2/min.) |
| Apparent Opening Size /micron | ASTM D-4751 | 100 140/150 microns U.S. Sieve |
| Hydrocarbon Capacity (nominal) | 1.5 (6.79) gal/yd2 (l/m2 ) |
Storm Drain Curb Inlet Applications
Wherever vulnerable storm drains exist, there is an Ultra Drain Guard Plus option to protect them. For combination drains with curb inlets, you can rely on the Ultra Drain Guard Plus, Curb Insert Model to filter sediment, oil and debris. For municipalities wanting to protect storm drains and stormwater curb openings, this curb opening catch basin will be perfect. The curb drain guard catches sediment and debris from construction sites, keeping you in compliance. In fact the Ultra Drain Guard plus helps keep you in compliance with Stormwater Management Regulation 40 CFR 122.26, National Pollutant Discharge Elimination System (NPDES), and Total Maximum Daily Load (TMDL).
Storm Drain Curb Inlet FAQs
Included with the Ultra Drain Guard Plus are the tension rods that hold the storm drain curb inlet filter in place. No other parts or hardware is needed to install the curb inlet filter. However, you will need to lift the storm drain grate, and we do carry several products (Grate Hook and Grate Lifter) that help you do that quicky and easily.
There's no definitive answer to when a Ultra Drain Guard is past its prime and should be replaced. There are certain drain guards all over the US that have been working successfully for over a year. However, the amount of rainfall and contaminants you expose the drain guard to will determine how long it will last and be effective. Under most circumstances, the Ultra Drain Guard Plus can be reused, as long as the only thing captured by it is sediment and debris. If the drain guard is saturated with oil and hydrocarbons, it cannot be reused and must be disposed of according to local regulations.
