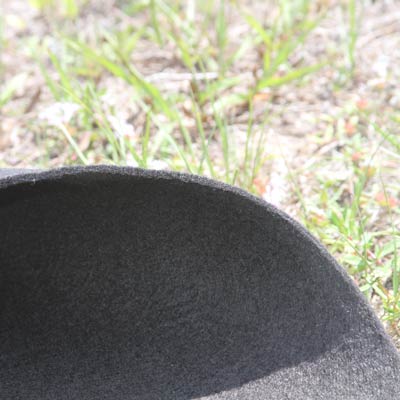

12 oz. Non Woven Geotextile Fabric
Non Woven Geotextile Soil Stabilization Fabric
The 12 oz. non woven geotextile fabric is a high-performance solution for demanding projects. Designed to reinforce soil, support steep slopes, and control erosion, this robust filtration fabric provides superior performance in both structural and environmental applications. Its puncture resistance and tensile strength ensure long-term stability in tough conditions, giving civil engineers, contractors, and municipal teams a dependable non woven geotextile soil stabilization fabric for heavy-use infrastructure and containment projects.
Let our friendly experts match you with the right product!
12 oz. Non Woven Geotextile Specifications
| Property | Minimum Average (Roll) | Test Method |
|---|---|---|
| Fabric Weight | 12 oz./yd² | 407 g/m² | ASTM D-5261 |
| Grab Tensile | 300 lbs | 1.33 kN | ASTM D-4632 |
| Grab Elongation | 50% | ASTM D-4632 |
| CBR Puncture Strength | 850 lbs | 3.78 kN | ASTM D-6241 |
| Trapezoidal Tear | 115 lbs | .511 kN | ASTM D-4333 |
| UV Resistance | 70%/500 hrs | ASTM D-4355 |
| Permittivity | 1 sec-1 | ASTM D-4491 |
| Flow Rate | 75 gpm/ft² flow | 3055 l/min/m² | ASTM D-4491 |
| AOS | 100 US Sieve | .150 mn | ASTM D-4751 |
*Unless otherwise noted these specifications are based on testing conducted at the time of manufacturing.
(Equivalent to Mirafi 1120N, Willacooche 1200N, Propex Geotex 1201, US Fabrics US 300NW, Carthage FX 120HS, Linq 275EX, Skaps GT 112)
Roll Sizes (sold by the roll or by the pallet):
- 12.5' W x 300' L (3,750 ft²/roll) | 3.8m W x 91.4m L
- 15' W x 300' L (4,500 ft²/roll) | 4.6m W x 91.4m L
Need more information on our biodegradable erosion control solutions? See our Erosion Control Line Card.
12 oz. Non Woven Geotextile Details
In addition to being UV resistant, the 12 oz. non woven geotextile fabric will not mildew or rot, is pH stable, and is not biodegradable. This 12 oz. geotextile fabric is also resistant to rodents and insects. This all comes together to translate into reliable and long-lasting performance results. The 12 oz. geotextile fabric's sieve rating proves that it is effective in filtering sediment while allowing stormwater to seep though. This geotextile soil stabilization fabric can be used in conditions with up to a 75 gpm/ft² flow. With a grab tensile strength of 300 lbs, puncture resistance up to 850 lbs., and an elongation rating of 50%, this filter fabric can withstand even extreme project requirements.
12 Oz. Non Woven Geotextile Fabric Features
- Puncture Resistance: 850 lbs.
- Grab Tensile Strength: 300 lbs.
- Flow Rate: Up to 75 gpm/ft²
- Sieve Rating: 100 US Sieve
12 Oz. Non Woven Geotextile Fabric Benefits
- Superior strength and durability
- Good filtration properties
- Tolerates higher flow rate situations
12 oz. Non Woven Geotextile Fabric Applications
This heavy-weight 12 oz. non woven geotextile soil stabilization fabric can be used for a wide variety of purposes. It is long lasting, extremely strong, and permeable. Typical users include civil engineers, general contractors, DOT and transportation agencies, landfill and lagoon designers, and municipal stormwater teams who need dependable non woven geotextile fabric for soil stabilization, drainage, and filtration.
- Soil Stabilization: Reinforce soft soils and improve base strength in road and site development, including access roads, parking lots, haul roads, and working platforms where contractors and engineers need a stable, well-supported subgrade.
- Erosion and Sediment Control: Prevent sediment displacement and control runoff on slopes, hillsides, and riverbanks, helping stormwater managers, inspectors, and erosion control contractors meet project-specific BMP and permit requirements.
- Underlayment: Add uniformity and protection beneath roadways, railroads, or sports fields, as well as under pavers and geomembranes, reducing differential settlement and protecting higher-value surfacing materials.
- Aggregate Separation: Maintain layer separation without interrupting stormwater flow in layered construction, keeping base and subgrade materials from mixing in road sections, laydown yards, and construction entrances.
- Drainage and Filtration: Allow water to pass through while filtering out fine particulates. Useful in swales, retention systems, French drains, behind retaining walls, and under riprap where reliable long-term drainage performance is critical.

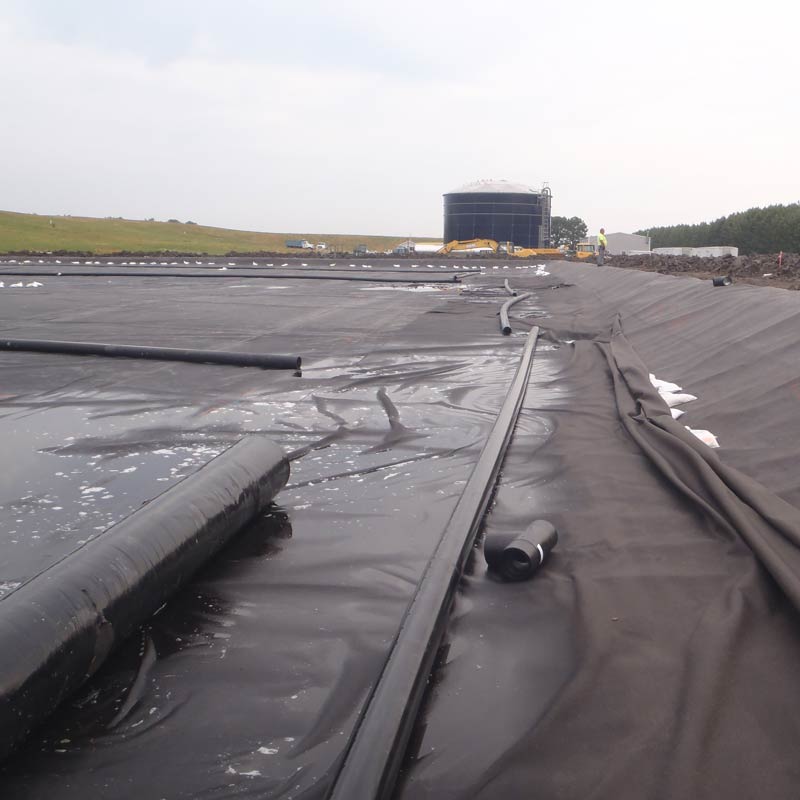

- Geomembrane Support: Acts as a protective layer between liners and subsoil in ponds and containment systems, cushioning geomembranes in lagoons, leachate collection systems, wastewater treatment basins, and other lined containment structures.

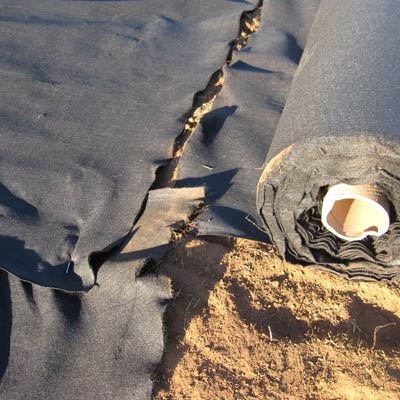

12 oz. Non Woven Geotextile Filtration Fabric Installation
The instructions listed below provide a general installation guide for the 12 oz. non woven geotextile for drainage. If available, site and project specific installation instructions should take priority in the installation process.
If you need a general guideline on geotextile installation, keep reading. Exact installation requirements will be reflected in your specific project guidelines. If you need assistance in figuring out which geotextile fabric you need, contact our product specialists for more information.
- Step 1: Prepare your install area by removing stumps, stones, and other items and pieces of debris that would penetrate the geotextile, making it unusable. If using the non woven 12 oz. geotextile fabric for roadway construction, clear vegetation and roots may also be required.
- Step 2: Next, level the location, removing soft soil in favor of a higher grade material. Place material in the install area until it is tight and flat against the surface. Usually, fabric is supposed to be overlapped according to site specifications, but generally a minimum overlap or 12" to 18' is the standard.
- Step 3: Secure this overlap with staples, pins, or other materials that will hold the 12 oz. non woven geotextile in place. As a last measure, backfill or place aggregate over the fabric. Generally, aggregate lift thickness will depend on the specifications of your soil and site, but 6" is the norm.
12 oz. Non-Woven Geotextile Fabric Frequently Asked Questions
As a soil stabilization fabric, the 12 oz. geotextile fabric works to add both filtration and strength to different projects it is applied to. As a soil stabilization non woven geotextile, the 12 oz. geotextile fabric will provide road stabilization for asphalt overlay and limit the effects of erosion.
The 12 oz. geotextile fabric is a high-strength non woven geotextile that has a grab tensile strength of 300 pounds. This non woven geotextile specification provides increased strength for areas and projects that require significant weight on top of the non woven geotextile fabric. Additionally, the water flow of the 12 oz. non woven geotextile is 75 gpm/ft2.
