Grate Guard
Drain Grate Cover
Grate guard covers offer stormwater protection for storm drain grates that is reliable and easy to install. Each drain grate cover is made from high-strength filter fabric, ready to slide over storm drain grates. Storm drain grate filter models include a sediment-only version and an oil and sediment catching version.
We provide the best prices possible, fast shipping directly to you, and knowledgeable representatives to answer your questions. Call us for more information about stormwater filtration options!
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Storm Grate Filter Features
- Woven Polypropylene Filter Fabric
- Sediment Only Model and Oil-Sediment Model
- Flat Grate Catch Basin Design
Storm Grate Filter Benefits
- Low-Profile, Unobtrusive
- Easy Installation
- Reliable Stormwater Filtration
Ultra Grate Guard Details
Grate guard protection tools keep you in compliance with the large pollutants that can plague storm water drains. A drain grate cover will slip seamlessly over a catch basin's grating, allowing easy installation without you having to remove the heavy grating. Two models that the grate guard comes in is a sediment only model and an oil and sediment model. The oil and sediment model can filter sediment, debris, and hydrocarbons with the addition of an absorbent pillow that will fit beneath the drain grate. Dimensions for the storm grate filter include 18" x 24" x 4", 24" x 36" x 4", 24" x 48" x 4". To remove the excess sediment and debris from the grate guard simply use a shovel or broom.
Ultratech Ultra Sediment Only Drain Grate Cover Specifications
| Part Number | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| Ultratech 9272-SED | Sediment Only | 18 x 24 x 4 (458 x 610 x 102) | 2.5 (1.0) |
| Ultratech 9273-SED | Sediment Only | 24 x 24 x 4 (610 x 610 x 102 | 2 (0.9) |
| Ultratech 9274-SED | Sediment Only | 28 x 28 x 4 (711 x 711 x 102) | 2 (0.9) |
| Ultratech 9275-SED | Sediment Only | 32 x 30 x 4 (813 x 762 x 102) | 2 (0.9) |
| Ultratech 9276-SED | Sediment Only | 24 x 36 x 4 (610 x 914 x 102) | 2.5 (1.0) |
| Ultratech 9277-SED | Sediment Only | 40 x 24 x 4 (1016 x 610 x 102) | 2.5 (1.0) |
| Ultratech 9278-SED | Sediment Only | 24 x 48 x 4 (610 x 1,220 x 102) | 3.0 (1.5) |
| Ultratech 9279-SED | Sediment Only | 24 dia x 3 (610 x 76) | 2 (0.9) |
| Ultratech 9280-SED | Sediment Only | 28 dia x 3 (711 x 76) | 2 (0.9) |
| Ultratech 9281-SED | Sediment Only | 36 dia x 3 (914 x 76) | 2 (0.9) |
Ultratech Ultra Oil and Sediment Drain Grate Cover Specifications
| Part Number | Model | Dimensions in. (mm) | Weight lbs. (kg) | Absorbent Capacity |
|---|---|---|---|---|
| Ultratech 9272-OS | Oil and Sediment | 18 x 24 x 4 (458 x 610 x 102) | 3.0 (1.5) | Up to 0.50 gallon (2.0 L) of oil per unit |
| Ultratech 9273-OS | Oil and Sediment | 24 x 24 x 4 (610 x 610 x 102) | 3 (1.4) | Up to 0.67 gallon (2.5 L) of oil per unit |
| Ultratech 9274-OS | Oil and Sediment | 28 x 28 x 4 (711 x 711 x 102) | 3 (1.4) | Up to 0.91 gallon (3.4 L) of oil per unit |
| Ultratech 9275-OS | Oil and Sediment | 32 x 30 x 4 (812.8 x 762 x 102) | 3 (1.4) | Up to 1.11 gallon (4.2 L) of oil per unit |
| Ultratech 9276-OS | Oil and Sediment | 24 x 36 x 4 (610 x 914 x 102) | 3 (1.4) | Up to 1.0 gallon (4.0 L) of oil per unit |
| Ultratech 9277-OS | Oil and Sediment | 40 x 24 x 4 (1016 x 610 x 102) | 3 (1.4) | Up to 1.11 gallon (4.2 L) of oil per unit |
| Ultratech 9278-OS | Oil and Sediment | 24 x 48 x 4 (610 x 1,220 x 102) | 3 (1.4) | Up to 1.34 gallon (5.36 L) of oil per unit |
| Ultratech 9279-OS | Oil and Sediment | 24 dia x 3 (610 x 76) | 3 (1.4) | Up to 0.67 gallon (2.5 L) of oil per unit |
| Ultratech 9280-OS | Oil and Sediment | 28 dia x 3 (711 x 76) | 3 (1.4) | Up to 0.91 gallon (3.4 L) of oil per unit |
| Ultratech 9281-OS | Oil and Sediment | 36 dia x 3 (914 x 76) | 3 (1.4) | Up to 1.11 gallon (4.2 L) of oil per unit |
Drain Grate Cover Applications
A grate guard will give you superior filtration and protection with minimal installation and easy maintenance. This drain grate cover is perfect for parking lots, construction sites, and other areas where a visible stormwater BMP is not an issue. For commercial districts and shopping centers, a visible storm grate filter might not be the solution you need. An under grate stormwater filter might be better suited to your needs. Consider your site and storm drains when choosing an appropriate stormwater BMP.
Ultratech Ultra Grate Guard Frequently Asked Questions
There are several differences between the grate guard and other stormwater grate BMPs. For one, the storm grate filter slides over the storm drain grate instead of sitting on top of it or hanging underneath it. This aspect of the grate guard elevates its function rather than its form. When considering what stormwater grate BMP you need, make sure to evaluate where the BMP will be used. Does it need to be low profile? Under or over the grate? Have questions about storm drain covers grates? We can answer them. Give our product specialists a call today.

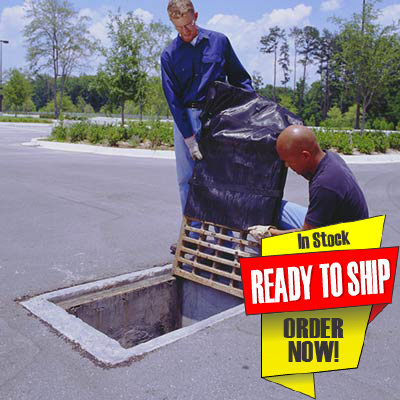

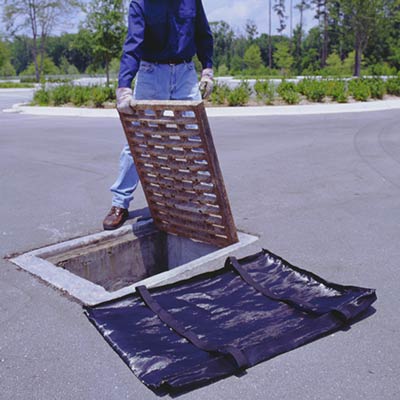

Installing a grate guard is simple but requires care. The most challenging part of installing a storm grate filter will be standing the grate on its edge. Luckily for you, storm drain covers grates don't require you to completely remove the grate. You just need to stand it up, slide the drain grate cover over the grate and close the flap. For more detailed information, contact us.
