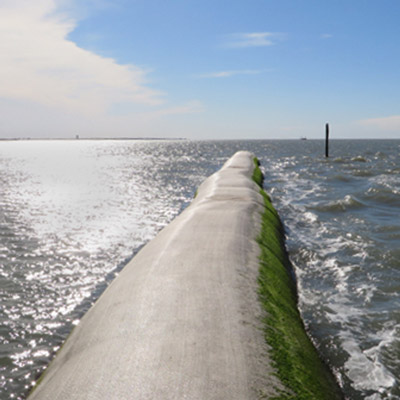

Breakwater Tubes

Geotextile Tubes for Coastal Protection

Breakwater tubes, or geotextile tubes for coastal protection, are used for shoreline wave protection and erosion control. Geotubes are beach barriers filled with sand, like a sandbag, that stabilizes a coastline.

Breakwater Tubes Features

  • Material: Woven Geotextile Fabric
  • Lengths: 50, 100, 150, 200, 250 feet
  • Circumference: 15, 22.5, 30, 45, 60, 75, or 90 feet

Breakwater Tubes Benefits

  • Durable Coastline Protection
  • UV-Treated for Harsh Environments
  • Reef-Like Protection Barrier

Breakwater Tubes Details

Breakwater tubes provide wave protection and coastline stabilization. They hold sand and sediment firmly in place. Filling the geotubes for coastal protection creates a dependable barrier to stabilize sloping terrain, keeping sand from washing out to sea.

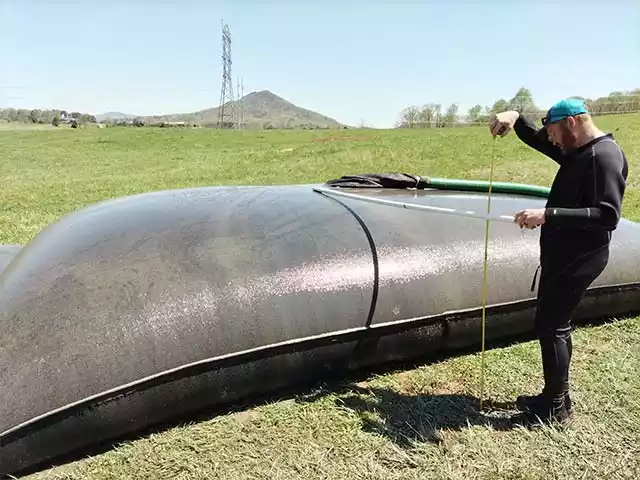

To control internal pressure when filling breakwater tubes, leave one port open to allow the flow of water out of the tube. The water will allow the sand to evenly disperse and deliver into the breakwater tube. Fill your breakwater tubes non-stop for best results with a mix of 15 percent sand and 85 percent water. A good normal fill rate for geotextile tubes coastal protection is 60-150 cubic yards per hour, and a normal slurry flow rate for geotubes for coastal protection 1,500 to 2,500 gallons per minute.

Breakwater Geotextile Tubes Specifications

Property Details Test Method
Wide Width Tensile 5,400 x 7,500 lbs/ft (79 x 109 kN/m) ASTM D-4595
Wide Width Elongation 17 x 13% ASTM D-4595
CBR Puncture 2,000 lbs (8,900 N) ASTM D-6241
Trapezoidal Tear 280 x 300 lbs (1,246 x 3,600 N) ASTM D-4533
Apparent Opening Size 40 US Sieve ASTM D-4751
Permittivity 0.26 Sec-1 ASTM D-4491
Water Flow Rate 20 g/min/sq. ft (815 l/min/sq. m) ASTM D-4491
UV Resistance 70% at 1,200 hrs ASTM D-4355

Geotubes Beach Application

Breakwater tubes can be used as sand tubes on beach properties, in addition to many other shoreline applications. Used for stabilization, geotubes for coastline protection can be implemented in a variety of locations for different projects. Breakwater tubes can be used as man-made sand dunes to strengthen shorelines and keep sand from washing out to sea. There will be different ways to utilize geotextile tubes for coastal protection depending on your property's environmental conditions. For coastlines suffering from erosion and in need of slope stabilization and erosion control, breakwater tubes will be used differently than as a vertical sea wall or a reef-like protection barrier, for example.

Breakwater Tubes Frequently Asked Questions

Breakwater tubes are a practical erosion control product that can be used for a variety of applications and projects. Solve shoreline erosion control problems with woven geotextile tubes for coastal protection. When you use geotubes on the beach as man-made sand dunes, you can trap sand and sediment to make sure coastlines don't erode. Breakwater tubes can also act as breakwalls or jetties, providing wave protection for sensitive environmental areas and coastlines that are prone to erosion. You can stack geotubes on the beach to make a vertical sea wall. The breakwater tubes break up the waves that hit the shore.

The fabric of the sand tubes on the beach is woven geotextile, making it ideal for the sand containment and flexibility needed to control erosion on your coastline. Colors for the fabric include the classic black fabric color option or a beige sand colored option that would allow the breakwater tubes to blend into your environment.
