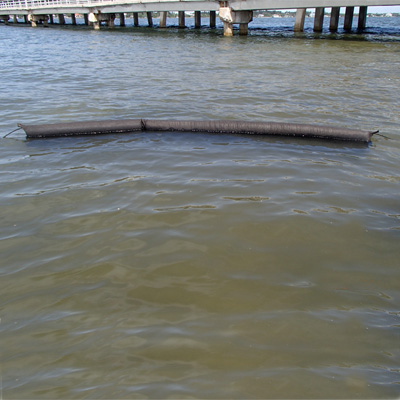

Type 1 Permeable Silt Screen

Geotextile Curtain for Filtering Sediment

The Type 1 Geotextile Silt Screen is an all permeable curtain that provides both containment and filtration in calm water areas. Made from an eight ounce (8 oz.) nonwoven geotextile, our curtains are often used in areas with mild conditions.

Geoxtextile Silt Screen Features

  • Impermeable PVC Material
  • Permeable Geotextile Filter Panels
  • Contractor or DOT Models

Geoxtextile Silt Screen Benefits

  • Allows Silt Enough Time to Settle
  • Permeable Panels Provide Filtration
  • Flow Through Permeability Eases Pressure on Curtain

Type 1 Silt Curtain Details

Geotextile curtains are constructed with either a 4" or 6" float and have a bottom skirt ranging anywhere from 3' to 10'. Silt screen curtains are intended for short term projects.

  • Ditches
  • Shallow Water
  • Calm Water Areas
  • Temporary Silt Containment Requirements

Type 1 Silt Screen Curtain Additional Models

For certain locations, having a more robust design is required in order to effectively keep silt contained. For these areas, standard impermeable Type 1 silt curtains (18 oz. PVC) are also available.

  • Contractor (13 oz. PVC, 4" Floats)
  • DOT (18 oz. PVC Fabric)
  • Economy (13 oz. PVC, 4" or 6" Floats)

Type 1 Silt Screen Typical Specifications

Standard Length 50'
Depth 3' to 10'
Flotation 4" Float 6" Float
Fabric 8 oz. Nonwoven Geotextile
Section Connectors Grommet Section Ties
Bottom Chain 5/16" Heavy Ballast Chain

Silt Screen Accessories for Anchoring and Installation

Protect your floating silt barriers with proper installation using these marine accessories:

  • Anchor Kits: pre-assembled for your convenience
  • Tow Bridle: helps distribute weight and stress load to prevent damage during towing
  • Reefing Lines: gives you control over how much curtain to unfurl for each panel section, so that the curtain isn't dragging and catching on the water body's floor
  • Tidal Compensator: adjusts automatically keeping the floating silt barrier positioned correctly with the changing tides.

Type 1 Permeable Silt Screen Frequently Asked Questions

For any location with a current, waves, or tides, Type 2 and Type 3 moving water silt curtains are required. These curtains include the following additional heavy-duty components:

  • Tension Cables
  • Section Connectors
  • Bottom Stress Plates

For more information about silt screen curtains, view our complete Silt Curtain Variety.

While (permeable) geotextile silt screen curtains are a good option for sites that require a permeable calm water barrier, many sites require an impermeable curtain in order to meet site requirements. Impermeable silt curtains should be used any time you are dealing with longer term applications, DOT requirements, or significant silt requirements. Some benefits of the standard silt curtains include:

  • Impermeable PVC Material
  • Increased Strength
  • Allows Silt Enough Time to Settle
  • Contractor or DOT Models

Permeable floating silt screen is available in Type 1, Type 2 and Type 3 models, with options to accommodate project sites with stronger currents and wind exposure.
