Tank Spill Containment Sump

Ultra Containment Sump

The tank spill containment sump from Ultratech provides reliable fuel tank containment to store tanks ranging in sizes from 275, 500/550, and 1,000 gallons. The Ultra containment sump comes in two styles. The standard model has a rigid containment tub that looks like a large plastic utility tub. The flexible model is made of collapsible material with L shaped brackets.

Tank Spill Containment Sump Features

  • Flexible Sump: 18 oz. PVC
  • Standard Rigid Sump: Linear Low-Density Polyethylene (LLDPE)
  • Over 1000 Gallon Capacities
  • Use with a Self-Bailer and Drain

Tank Spill Containment Sump Benefits

  • Fits Most Fuel Tanks
  • Ultra Containment Sump (Flexible): Less Expensive Shipping Option
  • Designed to Hold 110 Percent of Liquids Stored
  • Highly Resistant Material

Ultra Containment Sump Details

The Ultra containment sump is a spill solution that will save you from compliance fees when there is an onsite spill. Better yet, the spill containment sump is a portable solution that can be moved to different areas on the same site or from jobsite to jobsite.

Two Models of Secondary Tank Containment Sump

  • Standard Model Ultra Containment Sumps
  • Flexible Model Ultra Containment Sumps

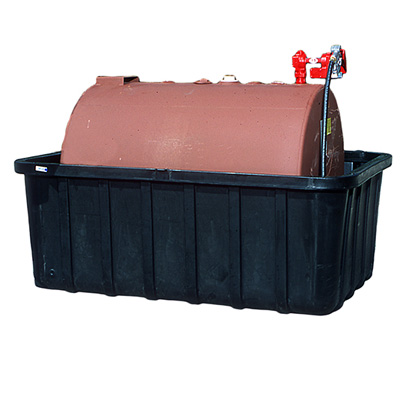

Rigid Containment Sump

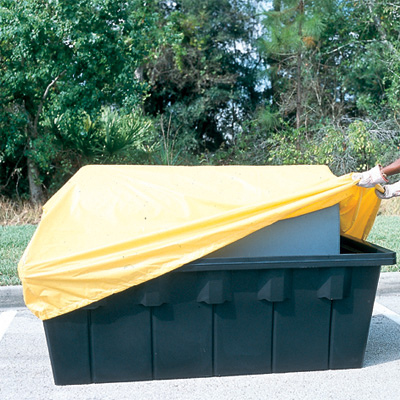

The fuel tank containment sump, made of Linear Low-Density Polyethylene (LLDPE), provides secondary containment for fuel tanks of 275, 550, and 1000 gallons. The actual containment capacity of the spill containment sump is 110 percent of the fuel tank capacity being stored. The all-polyethylene construction is corrosion and rust resistant. The rigid containment tub can be used with a self-bailer when used outdoors and with a drain, which must be specified. There's also an optional pullover cover to keep rainwater out of the Ultra containment sump.

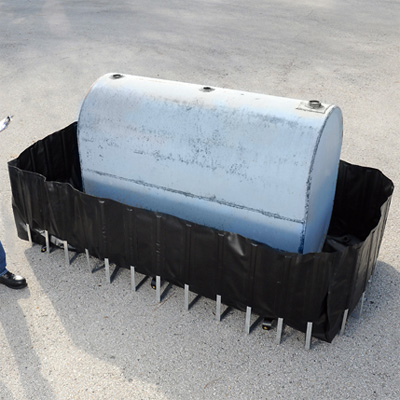

Flexible Containment Sump

The flexible model of tank spill containment sump is a containment tub that can be broken down and moved easily from site to site. Made with flexible 18 oz. PVC and L shaped brackets, this Ultra containment sump is easily folded and shipped. The flexible containment tub provides economical and portable spill containment that is also sturdy. The heat-welded PVC material easily holds the L shaped brackets in place for superior fuel tank containment.

Rigid Ultratech Ultra Containment Sump Specs (275 Gallons)

Part Number 2800
Dimensions in. (mm.) 85 x 44 x 29 (2,159 x 1,118 x 737)
Weight 90.0 lbs. (41.0 kg)
Containment Capacity 360 Gallons (1,363 L)
Inside Bottom Dimensions in. (mm) 71 x 31 (1,803 x 788)

Rigid Ultratech Ultra Containment Sump Specs (550 Gallons)

Part Number 2823
Dimensions in. (mm.) 90 x 61 x 32¾ (2,286 x 1,549 x 832)
Weight 108.0 lbs. (49.0 kg)
Containment Capacity 605 Gallons (2,291 L)
Inside Bottom Dimensions in. (mm) 75 x 47¾ (1,905 x 1,213)

Rigid Ultratech Ultra Containment Sump Specs (1000 Gallons)

Part Number 2830
Dimensions in. (mm.) 149 x 64 x 33 (3,785 x 1,626 x 838)
Weight 244.0 lbs. (111.0 kg)
Containment Capacity 1,100 Gallons (4,164 L)
Inside Bottom Dimensions in. (mm) 138 x 52 (3,505 x 1,321)

Flexible Ultratech Ultra Containment Sump Specs (275 Gallons)

Part Number 2850
Dimensions in. (mm.) 102 x 48 x 24 (2,591 x 1,220 x 610)
Weight 45.0 lbs. (20.0 kg)
Containment Capacity 400 Gallons (1,514 L)

Flexible Ultratech Ultra Containment Sump Specs (550 Gallons)

Part Number 2852
Dimensions in. (mm.) 102 x 72 x 24 (2,591 x 1,829 x 610)
Weight 65.0 lbs. (29.0 kg)
Containment Capacity 650 Gallons (2,460 L)

Flexible Ultratech Ultra Containment Sump Specs (1000 Gallons)

Part Number 2854
Dimensions in. (mm.) 162 x 78 x 24 (4,115 x 1,981 x 610)
Weight 1,150 lbs. (4,353 kg)
Containment Capacity 80.0 Gallons (36.0 L)

Spill Containment Sump Applications

The tank spill containment sump can be used to contain fuel tanks to keep you in compliance when spills occur on your site. If storing fuel tanks in outdoor conditions, where rainwater or stormwater can easily enter the Ultra containment sump, then a self-bailer can be used but only when the spill containment sump has been purchased with a drain. When the containment tub is used with a drain and a self-bailer, then rainwater and stormwater can be cleaned while you drain the sump from hydrocarbons.

Fuel tank containment is extremely important when staying in compliance. The Ultra containment sump might just look like a large plastic utility tub, but its important role in secondary tank containment will make sure you stay in compliance with SPCC and EPA regulations as well as stormwater management regulations.

Keeps You in Compliance With:

  • SPCC and EPA Container Storage Regulation 40 CFR 264.175
  • Stormwater Management Regulations - NPDES, 40 CFR 122.26 (1999)

Tank Spill Containment Sump FAQs

Shipping is a big difference between the two models of Ultra containment sump. The standard Ultra containment sump is made of hard LLDPE, which is stretch-wrapped and shipped via LTL freight. The flexible model of the Ultra containment sump, however, can be folded and shipped less expensively via the USPS.

Great question. When using a spill containment sump outside, stormwater can often get into the containment tub. In order to maintain proper stormwater regulations, you can filter the hydrocarbons from the large plastic utility tub through a self-bailer. Be aware that in order to use a self-bailer you will need to have an Ultra containment sump with a drain. Additionally, you can get a pullover cover to keep rainwater out of the standard Ultra containment sump.
