Mirafi®Non Woven Filter Fabric
Geotextile Soil Separator
Mirafi® N-Series nonwoven filter fabric designed for use for soil separation, filtration, and drainage applications. Our geotextile soil separator, with exceptional permittivity properties, provides higher water flow rates and excellent soil retention. This makes it the ideal solution for subsurface drainage along highways, within embankments, under airfields, and for athletic fields. Excellent strength and abrasion resistance ensure fabrics withstands installation and application stresses, Mirafi® N-Series provides effective, long-term drainage solutions.
Our friendly staff is here to help you get the exact product you need!
Call Us! 1-863-261-8388or Contact us for additional information.
Mirafi® Mscape Features
- Polypropylene Nonwoven Geotextile Fabric
- Heavyweight, Durable Construction and Design
- Withstand Installation Stresses
- Strength and Abrasion Resistant
- Resistant to Tears and Punctures
Geotextile Soil Separator Benefits
- Conforms to Ground or Trench Surface
- Filtration and Drainage Applications
- Effective Filter Performance
- Chemically Stable in Aggressive Environment
- Cost Effective Alternative to Graded Aggregate Filters
Mirafi® Nonwoven Filter Fabric
Mirafi® N-Series nonwoven filter fabric is designed to conform to ground or trench surfaces, ensuring a problem free installation. Our geotextile soil separator fabric, with its high flow through rate, makes it the perfect answer for soil separation, drainage and filtration applications. Mirafi® geotextiles eliminate complications in determining the aggregate gradation required to match soil conditions, ensuring constructed in-place drainage systems provide effective filter performance.
Mirafi® Nonwoven Filter Fabric Specifications
| MECHANICAL PROPERTIES | TEST METHOD | UNIT | 140NL | 140NC | 140N | 160N | 170N | 180N | 1100N | 1120N | 1160N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Grab Tensile Strength: | MINIMUM AVERAGE ROLL VALUE | ||||||||||
| Strength | ASTM D4632 | lbs (N) | 90 (401) | 100 (445) | 120 (534) | 160 (712) | 180 (801) | 205 (912) | 250 (1113) | 300 (1335) | 380 (1691) |
| Elongation | ASTM D4632 | % | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Trapezoid Tear Strength | ASTM D4533 | lbs (N) | 40 (178) | 45 (200) | 50 (223) | 60 (267) | 75 (334) | 80 (356) | 100 (445) | 115 (512) | 140 (623) |
| CBR Puncture Strength | ASTM D6241 | lbs (N) | 250 (1113) | 250 (1113) | 310 (1380) | 410 (1825) | 450 (2003) | 500 (2224) | 700 (3115) | 800 (3560) | 1025 (4561) |
| HYDRAULIC PROPERTIES | |||||||||||
| MAXIMUM OPENING SIZE | |||||||||||
| Apparent Opening Size | ASTM D4751 | US Sieve (mm) | 50 (0.30) | 70 (0.212) | 70 (0.212) | 70 (0.212) | 70 (0.212) | 80 (0.18) | 100 (0.15) | 100 (0.15) | 100 (0.15) |
| MINIMUM ROLL VALUE | |||||||||||
| Permittivity | ASTM D4491 | sec-1 | 2.0 | 2.0 | 1.7 | 1.5 | 1.4 | 1.4 | 0.8 | 0.8 | 0.7 |
| Flow Rate | ASTM D4491 | gal/min/ft2 (l/min/m2)sec-1 |
145 (5907) 2.0 | 140 (5704) | 135 (5500) | 110 (4481) | 105 (4278) | 95 (3870) | 75 (3056) | 65 (2648) | 50 (2037) |
| MINIMUM TEST VALUE | |||||||||||
| UV Resistance After 500 hrs | ASTM D4355 | % strength | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| PACKAGING | UNIT | 140NL | 140NC | 140N | 160N | 170N | 180N | 1100N | 1120N | 1160N | |
| Roll Width | - | ft (m) | 12.5 (3.8) 15.0 (4.57) |
12.5 (3.8) 15.0 (4.57) |
12.5 (3.8) 15.0 (4.57) |
12.5 (3.8) 15.0 (4.57) |
12.5 (3.8) 15.0 (4.57) |
12.5 (3.8) 15.0 (4.57) 170 |
15.0 (4.57) | 15.0 (4.57) | 15.0 (4.57) |
| Roll Length | - | ft (m) | 360 (110) | 360 (110) | 360 (110) | 300 (91.4) 360 (110) |
12.5 (3.8) 15.0 (4.57) |
360 (110) 300 (91.4) |
300 (91.4) | 300 (91.4) | 150 (46) |
| Roll Area | - | yd2 (m2) | 500 (418) 600 (502) |
500 (418) 600 (502) |
500 (418) 600 (502) |
500 (418) 600 (502) |
500 (418) 600 (502) |
500 (418) 600 (502)) |
500 (418) | 500 (418) | 250 (209) |
Mirafi®Nonwoven Filter Fabric Applications
Mirafi® geo fabrics are used for subsurface drainage along highways, within embankments, for athletic fields, and under airfields. They are effective in critical subsurface drainage systems, permanent erosion control, soil separation, and geo-membrane liner protection in landfills. This nonwoven filter fabric provides the necessary strength and abrasion resistance to tolerate installation and application stresses, creating an effective, long-term drainage solution.
Uses for geotextile soil separator fabrics:
- Soil Separation
- Permanent Erosion Control
- Cut-off/Interceptor Drains

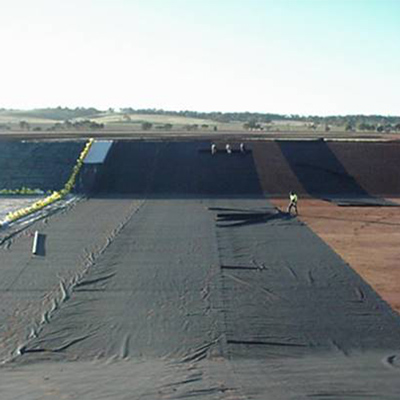

- Geo-membrane Liner for Landfills
- Subsurface Drainage System
- French Drains
Call one of our specialist today for help with your Mirafi® Mscape landscape fabric specifications and applications.

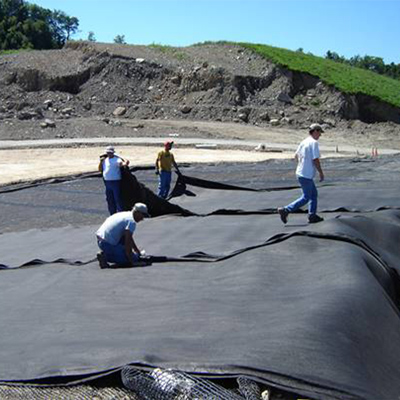

Mirafi®Nonwoven Fabric Installation Instructions
Use as a guide, general nonwoven Mirafi® Mscape landscaping installation are listed below. It is best to use specific instructions designed for your project's unique conditions and environment.

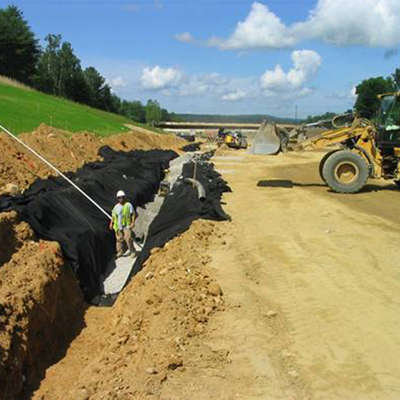

- First, cut N series fabric prior to placement.
- Width should be enough to conform to the trench perimeter with at least a 6in (15cm) top overlap
- Place the soil separator roll over the trench, and unroll enough that fabric can be placed down into the trench.
- Anchor edges of the N series fabric with heavy objects to prevent fabric from falling into the trench.
- Where overlaps are necessary between rolls, allow for 3 ft. overlap from the upstream to downstream roll.
For assistance with installation for your landscaping or filtering application, please Contact Us
Non-Woven Filter Fabric Frequently Asked Questions
Mirafi® nonwoven geotextile fabric is a synthetic permeable fabric made by needle-punching the fibers during manufacture. This makes the fabric easily recognized by its felt-like appearance and texture. Non woven geotextiles are commonly used for filtration or separation in construction or erosion control projects.
Geotextiles are classified as either woven or nonwoven. As the name indicates, the main difference between the two products is how they are manufactured. Woven geotextiles are woven together with industrial looms in a consistently applied pattern. Nonwoven geotextiles are manufactured with a needle-punch process, using barbed staples to create a felt-like permeable fabric. Give us a call to find the right geotextile for you at 863-261-8388.
