Drain Seals
Drain Protector Safety Seal
A polyurethane drain seal helps block spills from entering storm drains. Flexible and chemical-resistant, this cover quickly adheres to the edges of standard drains in parking lots, loading docks, fueling stations, and similar areas. It provides an effective barrier against oils, fuels, and other harmful substances, supporting compliance with environmental regulations and protecting water systems.
Drain Protector Safety Seal Details
The Ultratech drain seal is a drain protector safety seal that provides heavy duty, complete protection for storm drains against water and hydrocarbons. The drain seal has reinforced polyurethane layers that enclose reinforced mesh. These materials make for a durable, short-term reaction to unwanted spills and leaks. Types of storm drain seals include square, circular, and rectangular models for storm drain protection.
Storm Drain Seal Features
- Outside Layers: Polyurethane
- Interior Material: Reinforced Mesh
- Circular, Square, Rectangle Models
Storm Drain Seal Benefits
- Easy to Use and Install
- Complete Protection and Drain Seal
- Simple Maintenance

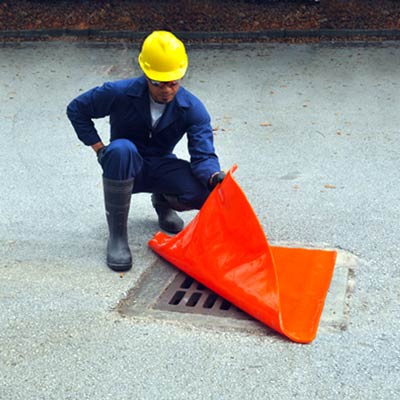

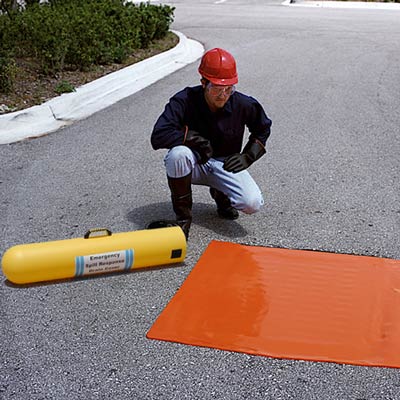

Square Ultratech Ultra Drain Seal Specifications
| Part Number | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|
| Ultratech 2126 | 18 x 18 x 3/8 (458 x 458 x 10) | 5.0 (2.5) |
| Ultratech 2127 | 24 x 24 x 3/8 (610 x 610 x 10) | 8.0 (3.5) |
| Ultratech 2130 | 36 x 36 x 3/8 (915 x 915 x 10) | 20.0 (9.0) |
| Ultratech 2131 | 42 x 42 x 3/8 (1067 x 1067 x 10) | 23.0 (10.5) |
| Ultratech 2132 | 48 x 48 x 3/8 (1220 x 1220 x 10) | 36.0 (17.0) |
| Ultratech 2133 | 54 x 54 x 3/8 (1372 x 1372 x 10) | 41.0 (18.5) |

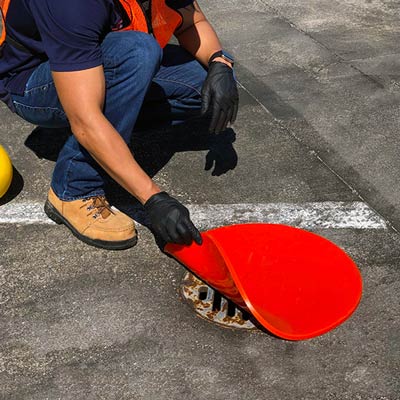

Circular Ultratech Ultra Drain Seal Specifications
| Part Number | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|
| Ultratech 2134 | 12 dia. x 3/8 (305 x 10) | 3.0 (1.5) |
| Ultratech 2135 | 20 dia. x 3/8 (508 x 10) | 6.0 (3.0) |
| Ultratech 2136 | 30 dia. x 3/8 (762 x 10) | 11.0 (5.0) |
| Ultratech 2137 | 42 dia. x 3/8 (1067 x 10) | 19.0 (9.0) |

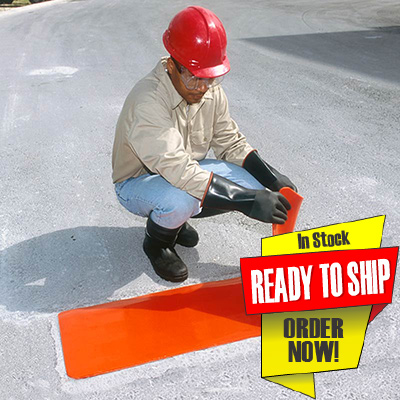

Rectangular Ultratech Ultra Drain Seal Specifications
| Part Number | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|
| Ultratech 2124 | 18 x 58 x 3/8 (458 x 1474 x 10) | 16.0 (7.0) |
| Ultratech 2125 | 36 x 58 x 3/8 (915 x 1474 x 10) | 26.0 (12.0) |
Storm Drain Seal Applications
Storm drain seals help protect drainage systems by containing spills and preventing contaminants from reaching the water supply. They are used across many industries and applications, including:
- Fueling stations and gas stations
- Car washes
- Auto repair shops, tire shops, and mechanic garages
- Commercial loading docks and distribution centers
- Industrial plants and manufacturing facilities
- Emergency response and spill containment operations
Storm Drain Seal Frequently Asked Questions
The most beneficial accessory that the drain seal can be used with is the drain seal wall mount and the drain seal truck mount. When spills happen, you need to have quick, easy access to your spill response products. A wall mount will allow you to have your storm drain seal in a highly visible place, easily accessed. The same is true for the truck mount for the drain seal. Truck mounts are meant to be installed underneath trailers for easy access when spills occur. Drain seal truck mounts and wall mounts are made with heavy duty polyethylene that will not corrode.
A drain protector safety seal is great for outdoor use when leaks and spills threaten to contaminate your storm drain. However, they are effective short-term solutions for leaks and spills. The polyethylene material will break down under extended UV exposure.
