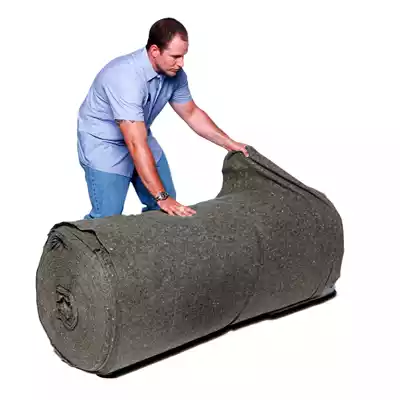

Ultra X Tex Fabric
Oil Absorbent Fabric to Filter Polluted Water
Ultra X Tex Fabric is a hydrophilic fabric that pulls oil and hydrocarbons from polluted water, allowing clean water to flow freely. Ultra X-Tex Fabric is used in numerous applications, most notably for stormwater management practices and for oil spill cleanup efforts. Ultra X-Tex is made from recycled synthetic fibers. The materials of the oleophilic fabric are blended and processed into a lightweight fiber mass with a great deal of surface area, which makes it a perfect, high-performance sorbent fabric. See our videos below for more information or read our applications section.
We provide the best prices possible, fast shipping directly to you, and knowledgeable representatives to answer your questions. Call us for more information about the oil-absorbing Ultra X-Tex fabric!
Ultra X-Tex Fabric Features
- Made From Recycled Synthetic Fibers
- High-Performance Sorbent Fabric and Filter Media
- Approx. 85-90% of Oils Captured Can Be Reclaimed
Ultra X-Tex Fabric Benefits
- Cost Effective Sorbent Fabric
- Environmentally Friendly
- Allows Large Volumes of Water to Pass Through While Filtering Oils
Ultra X-Tex Fabric Details
Ultra X-Tex Fabric, the high-performance sorbent material, is made from recycled synthetic materials woven and blended together into a lightweight mass of fiber with a large surface area. X-Tex fabric is a filter media for both stormwater management and oil spill applications. Ultra X-Tex fabric pulls oil and hydrocarbons from polluted water while allowing the clean, filtered water to flow through. The oils pulled from the polluted water are held in the X-Tex fabric and not released back into the filtered water.
The Ultra X-Tex fabric is designed for large volumes of water to pass through it while absorbing an average of 13 times its own weight in liquid hydrocarbons. The Ultra X-Tex fabric is also great for water polishing applications and in stormwater and wastewater filtration systems. The Ultra X-Tex fabric is environmentally friendly and user-friendly. When used, the Ultra X-Tex fabric doesn't leech harmful particles into the environment and when incinerated, it produces minimal residue and ash.
Ultra X-Tex Specifications
|Part Number||Ultratech 9310|
|Dimensions in. (mm)||250 x 5 x 0 (76.2 x 1.5 x 0)|
|Absorption Capacity gal. (L)||1.5 (5.7) per sq. yd.|
|Weight lbs. (kg)||125 (56.7)|
Ultra X-Tex Material Specifications
|Mass Per Unit Area||ASTM 5261||11.0 (341.16) oz/yd. (g/m)|
|Grab Tensile MD||ASTM D-4632||118 (53.5) lbs (kg)|
|Grab Tensile TD||ASTM D-4632||89 (40.4) lbs (kg)|
|Elongation at Peak MD||ASTM D-4632||131 percent|
|Elongation at Peak TD||ASTM D-4632||172 percent|
|Wide Width Tensile MD||ASTM D-4595||33 (5.89) lbs/in (kg/cm)|
|Wide Width Tensile TD||ASTM D-4595||23 (4.11) lbs/in (kg/cm)|
|Elongation at Break MD||ASTM D-4595||110 percent|
|Elongation at Break TD||ASTM D-4595||156 percent|
|Mullen Burst||ASTM D-3786||214 (15) lbs/sq.in (kg/cm2)|
|Puncture Resistance||ASTM D-4833||72 (32.7) lbs (kg)|
|Trapezoid Tear Strength MD||ASTM D-4533||64 (29) lbs (kg)|
|Trapezoid Tear Strength TD||ASTM D-4533||45 (20.4) lbs (kg)|
|Permittivity(Constant Head)||ASTM D-4491||2.02 sec-1|
|Permeability||ASTM D-4491||0.72 cm/sec|
|Flow Rate||ASTM D-4491||151 (6152)gal/ft2/min. (l/m2/min.)|
|Apparent Opening Size /micron||ASTM D-4751||100 140/150 microns U.S. Sieve|
|Hydrocarbon Capacity (nominal)||1.5 (6.79) gal/yd2 (l/m2 )|
Oil Absorbent Fabric Applications
Oil absorbing Ultra X-Tex fabric can be used in many ways. Some of the standard ways that oil absorbent fabric can be used are stormwater management and in oil spill cleanup. Specifically, oil blankets, which are usually the last line of defense along a shore in the event of an oil spill, are made using Ultra X-Tex fabric. They are placed along the shore and in the surf and hold up to 8.3 gallons of oil, per each 5' x 10' blanket. The Spill Fence is related to the silt fence product, but uses Ultra X-Tex with stakes and wire backing. This Spill Fence is usually placed in sensitive areas like marshes, wetlands, and shorelines with flat water.
Common Industries Where Ultra X-Tex Excels:
- Stormwater & Surface Water Filtration
- Construction & Manufacturing
- Marine Cleanup
- Military Efforts
- Oil Industry
- Transportation Infrastructure
Oil Booms are for floating oil spills on open water and are available in lengths of 6 feet and are preinstalled with connecting hardware. For stormwater management applications, Ultra-X-Tex is available in many Drain Guard models, including the Ultra Drain Guard Recycled Model. The Ultra Drain Guard (Ultimate model) has hanging strips of Ultra X-Tex AM (Antimicrobial), which kills destructive bacteria.
Ultra X-Tex Applications At-A-Glance:
- For Airports: absorb runoff from zipper and trench drains, and for oil spills and leaks in maintenance hangers
- For Railroads: to absorb oil between tracks and under engines
- For Restaurants: Absorbing roof-top oils around grill exhaust fans and vents and filtering oils in floor drains and grease traps
- For Construction and Manufacturing: Ground cover under heavy equipment to absorb hydraulic fluid, oil leaks, and fuel spills and remove petroleum contaminates and sheen in sumps
- For Marine Ecological Efforts: Oil spill cleanup, including every type of oil and viscosity and Shoreline protection from oil spill
- And so much more!
Ultra X-Tex is such a versatile product that so many industries and companies already use it. It's been proven in its field time and again. For more information on just how much it can help you and your projects, whatever your industry or area of expertise, contact us at 863-261-8388.
Oil Absorbent Fabric FAQs
Approximately 85 to 90 % of the absorbed oils can be reclaimed from the Ultra X-Tex material and the media can be reused. This process is accomplished through a press or centrifuge.
When you compare the amount of oil and hydrocarbons that can be absorbed in the Ultra X-Tex Fabric, it's easy to see how cost effective the oil absorbing fabric really it. Add to that all of its other benefits: environmentally friendly, flow rate (151 gal/ft2/min.), the amount of uses it has, and how it's been used in the field, the product speaks for itself.
